CSI A26-4X4 A26-4X4

CSI A26-4X4

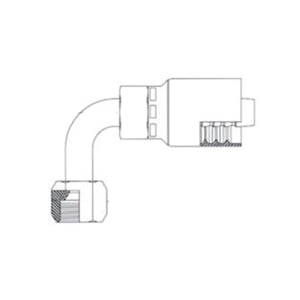

CSI A Series Trivalent Zinc-Plated Female SAE 45 deg/37 deg JIC Swivel Crimp Hose 90 deg Elbow, 1/4 in

  • Manufacturer: Couplamatic Systems Inc
  • Brand: CSI
  • ARGPN: A26-4X4
  • MPN: A26-4X4
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
Add To Favorites
  1. pin-int

CSI Crimp Hose 90 deg Elbow, Series: A, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: SAE 45 deg/37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 9/16 in, Finish: Trivalent Zinc-Plated, For Use With: 100R1/1SN Thin Cover (57MB-1, 56MB-1), 100R2 Thin Cover (57MB-2, 56MB-2), 2SN, 2SK, HY-PLUS I (HPI) and III (HPIII), 100R16/2SC (R16), Dura-Hyd R16 (DH16), Dura-Hyd EX R16 (DHEX16), 100R17 (R17 and R17R), Dura-Hyd R17 (DH17 and WDH17) and Jack Hose (Male NPTF Solid Only) (JH) Hoses

Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg/37 deg JIC Swivel
Finish      :      Trivalent Zinc-Plated
Fitting Type      :      90 deg Elbow
For Use With      :      100R1/1SN Thin Cover (57MB-1, 56MB-1), 100R2 Thin Cover (57MB-2, 56MB-2), 2SN, 2SK, HY-PLUS I (HPI) and III (HPIII), 100R16/2SC (R16), Dura-Hyd R16 (DH16), Dura-Hyd EX R16 (DHEX16), 100R17 (R17 and R17R), Dura-Hyd R17 (DH17 and WDH17) and Jack Hose (Male NPTF Solid Only) (JH) Hoses
Gender 2      :      Female
Hex Size      :      9/16 in
Hose Dash Size      :      04
Nominal Size      :      1/4 in
Series      :      A
Shape      :      90 deg Elbow
Thread Size 2      :      7/16-20

Bite to the wire hydraulic hose ends for 100R1/1SN thin cover (57MB-1, 56MB-1), 100R2 thin cover (57MB-2, 56MB-2), 2SN, 2SK, HY-PLUS I (HPI) and III (HPIII), 100R16/2SC (R16), Dura-Hyd R16 (DH16), Dura-Hyd EX R16 (DHEX16), 100R17 (R17 and R17R), Dura-Hyd R17 (DH17 and WDH17) and jack hose (male NPTF solid only) (JH). A series couplings can be crimped in virtually all adjustable crimp machines. Some non-adjustable crimp equipment can produce crimp dimensions within CSI's recommended crimp specification.

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/CSI_R5208X8_CAT.pdf
