Adaptall 9197-08-L12-18
  1. pin-int

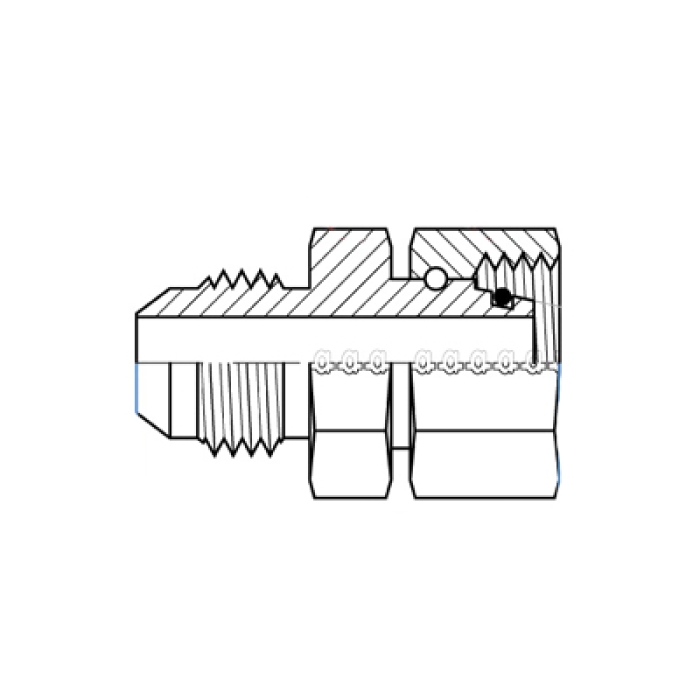

Adaptall 9197 Carbon Steel Light-Duty Straight Adapter, 12 mm Female Metric DIN Tube Swivel x 1/2 in Male JIC

Adaptall 9197-08-L12-18

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9197-08-L12-18
  • MPN: 9197-08-L12-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall Light-Duty Straight Adapter, Series: 9197, Connection Type 1: Metric DIN Tube Swivel, Gender 1: Female, Connection Size 1: 12 mm, Thread Size 1: M18 x 1.5, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16 UNF, Hex Size: 19 x 22 mm, Dimension Standards: SAE J514, ISO 8434-2, ISO 8434-1, DIN 2353, Material Construction: Carbon Steel, 45.3 mm Length

Connection Size 1      :      12 mm
Connection Size 2      :      1/2 in
Connection Type      :      Metric~JIC
Connection Type 1      :      Metric DIN Tube Swivel
Connection Type 2      :      JIC
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 8434-1, DIN 2353
Fitting Type      :      Straight Adapter
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      19 x 22 mm
Length      :      45.3 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9197
Shape      :      Straight
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/4-16 UNF
