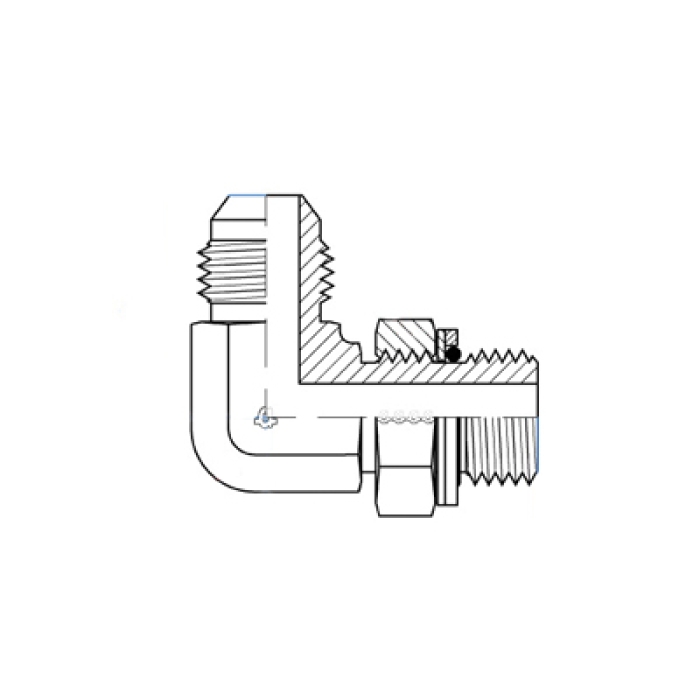

Adaptall 9069 Carbon Steel 90 deg Adjustable Elbow, 18 mm Male Metric x 1/2 in Male JIC

Adaptall 9069-08-18

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • ARGPN: 9069-08-18
  • MPN: 9069-08-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Adaptall 90 deg Adjustable Elbow, Series: 9069, Connection Type 1: Metric, Gender 1: Male, Connection Size 1: 18 mm, Thread Size 1: M18 x 1.5, Connection Type 2: JIC, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16 UNF, Hex Size: 19 x 24 mm, Dimension Standards: SAE J514, ISO 8434-2, ISO 9974, ISO 6149, DIN 7631, Material Construction: Carbon Steel

Connection Size 1      :      18 mm
Connection Size 2      :      1/2 in
Connection Type      :      Metric~JIC
Connection Type 1      :      Metric
Connection Type 2      :      JIC
Dimension Standards      :      SAE J514, ISO 8434-2, ISO 9974, ISO 6149, DIN 7631
Fitting Type      :      90 deg Elbow
Gender 1      :      Male
Gender 2      :      Male
Hex Size      :      19 x 24 mm
Material      :      Steel
Material Construction      :      Carbon Steel
Series      :      9069
Shape      :      90 deg Elbow
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/4-16 UNF
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Adaptall_9059-08-12_CAT.pdf
