Weatherhead® 20Z-A84
  1. pin-int

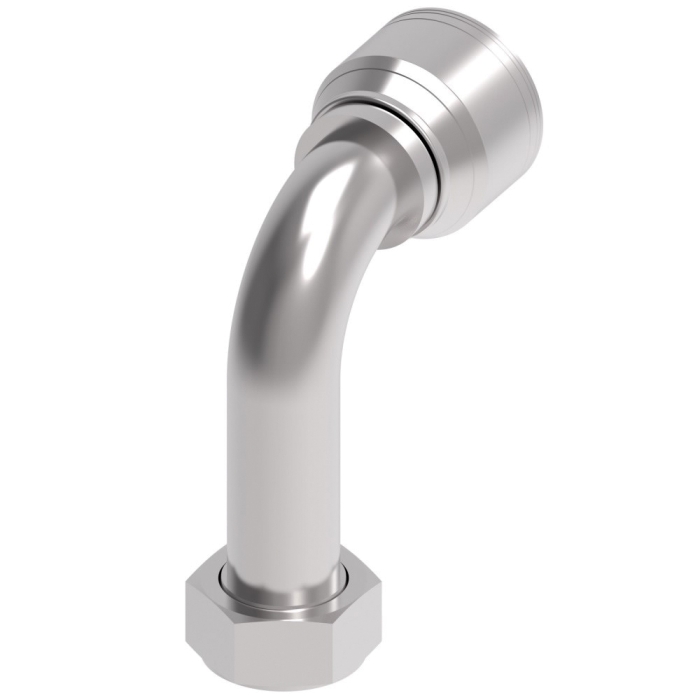

Weatherhead® Z Series Dura-Kote Carbon Steel Female ORFS Swivel Crimp Hose 90 deg Long Drop Tube Elbow, 1-1/4 in

Weatherhead® 20Z-A84

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: 20Z-A84
  • MPN: 20Z-A84
  • UPC: 639789321527
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® Crimp Hose 90 deg Long Drop Tube Elbow, Series: Z, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 1-1/4 in, Nominal Size: 1-1/4 in, Thread Size 2: 2-12, Hex Size: 2-1/4 in, Cut-Off Factor: 2.77 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses, Dimensions: 4.32 in L x 2.41 in W x 5.54 in H, Dimension Standards: SAE J1176

Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Connection Type      :      Hose~ORFS Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      ORFS Swivel
Cut-Off Factor      :      2.77 in
Dimension Standards      :      SAE J1176
Dimensions      :      4.32 in L x 2.41 in W x 5.54 in H
Finish      :      Dura-Kote
Fitting Type      :      90 deg Elbow
For Use With      :      H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 and -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 (-04, -06, -08, -12, -16), H275 (-04 thru -16), H1812 (-04 thru -20), H0106 (-04 thru -10), H0105 (-06 thru -12, -20), H116 (-04, -06, -08), H115 (-04 thru -20), H1982 (-06 thru -16), H1981 (-04, -06, -08), H9949, EC115, EC215, EC110, EC210, and EC118 Series Hoses
Gender 2      :      Female
Hex Size      :      2-1/4 in
Hose Dash Size      :      20
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1-1/4 in
Series      :      Z
Shape      :      90 deg Elbow
Thread Size 2      :      2-12
  • Dura-Kote™ plating for superior corrosion resistance
  • Innovative design to deliver performance and maximum uptime
  • System engineered to extend hose assembly life

Applications: General-purpose low and medium-pressure hydraulics

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_04Z-10E_CAT.pdf
