Weatherhead® 06E-646 06E-646

Weatherhead® 06E-646

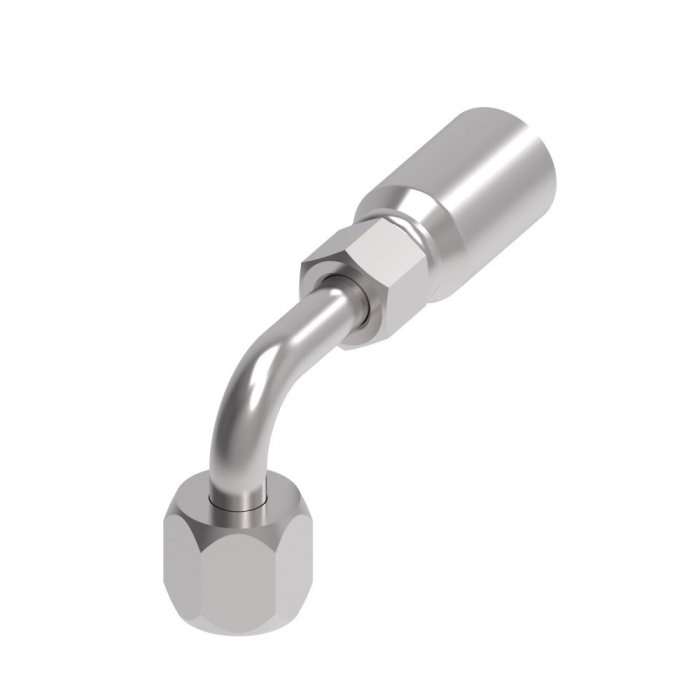

Weatherhead® Coll-O-Crimp E Series Zinc Clear Trivalent Chromate Carbon Steel Female SAE 37 deg JIC Swivel Crimp Hose 90 deg Long Drop Elbow, 3/8 in

  1. pin-int

Weatherhead® Crimp Hose 90 deg Long Drop Elbow, Series: Coll-O-Crimp E, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 5/8 x 11/16 in, Cut-Off Factor: 1.69 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, and SC-TW Series PTFE Hoses, Dimensions: 3 in L x 3.12 in H x 0.78 in W

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 37 deg JIC Swivel
Cut-Off Factor      :      1.69 in
Dimensions      :      3 in L x 3.12 in H x 0.78 in W
Finish      :      Yellow Zinc Dichromate
Fitting Type      :      90 deg Elbow
For Use With      :      H009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, and SC-TW Series PTFE Hoses
Gender 2      :      Female
Hex Size      :      5/8 x 11/16 in
Hose Dash Size      :      06
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      3/8 in
Series      :      Coll-O-Crimp E
Shape      :      90 deg Elbow
Thread Size 2      :      9/16-18

Applications: General-purpose low and medium-pressure hydraulics

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_03E-102_CAT.pdf
