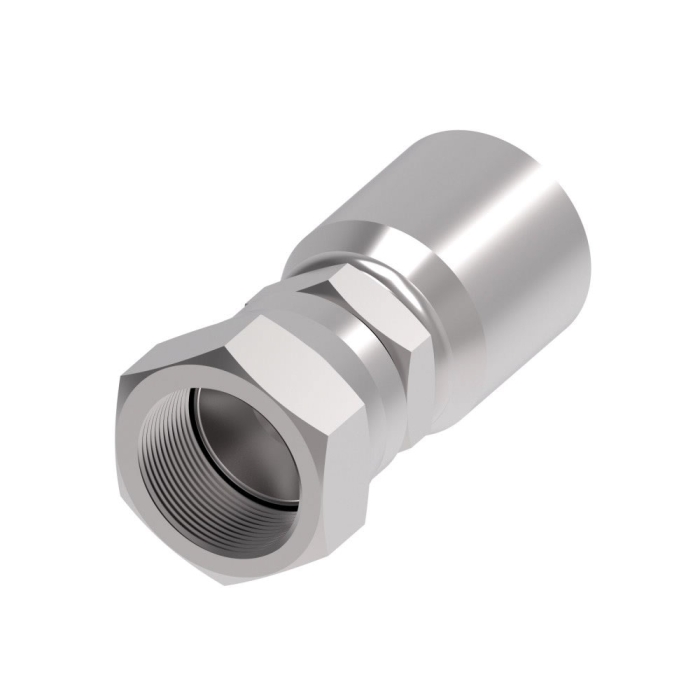

Weatherhead® Crimp Straight Hose Fitting, Series: Coll-O-Crimp E, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: 30 deg JIS Flare Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: G 3/8-19, Hex Size: 0.875 x 0.6875 in, Cut-Off Factor: 1.29 in, Material Construction: Carbon Steel, Finish: Zinc Clear Trivalent Chromate, For Use With: H009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, and SC-TW Series PTFE Hoses, Dimensions: 2.24 in L x 0.875 in W x 1.01 in H
| Connection Size 1 |
: |
3/8 in |
| Connection Size 2 |
: |
3/8 in |
| Connection Type |
: |
Hose~JIS Female Swivel |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
30 deg JIS Flare Swivel |
| Cut-Off Factor |
: |
1.29 in |
| Dimensions |
: |
2.24 in L x 0.875 in W x 1.01 in H |
| Finish |
: |
Zinc Clear Trivalent Chromate |
| Fitting Type |
: |
Straight Hose Fitting |
| For Use With |
: |
H009, H209, H243, H265, H275, H277, H285, H435, H436, S-TW, and SC-TW Series PTFE Hoses |
| Gender 1 |
: |
Female |
| Gender 2 |
: |
Female |
| Hex Size |
: |
0.875 x 0.6875 in |
| Hose Dash Size |
: |
06 |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Nominal Size |
: |
3/8 in |
| Series |
: |
Coll-O-Crimp E |
| Shape |
: |
Straight |
| Thread Size 2 |
: |
G 3/8-19 |
Applications: General-purpose low and medium-pressure hydraulics
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_75706E-Z06_CAT_New.pdf
