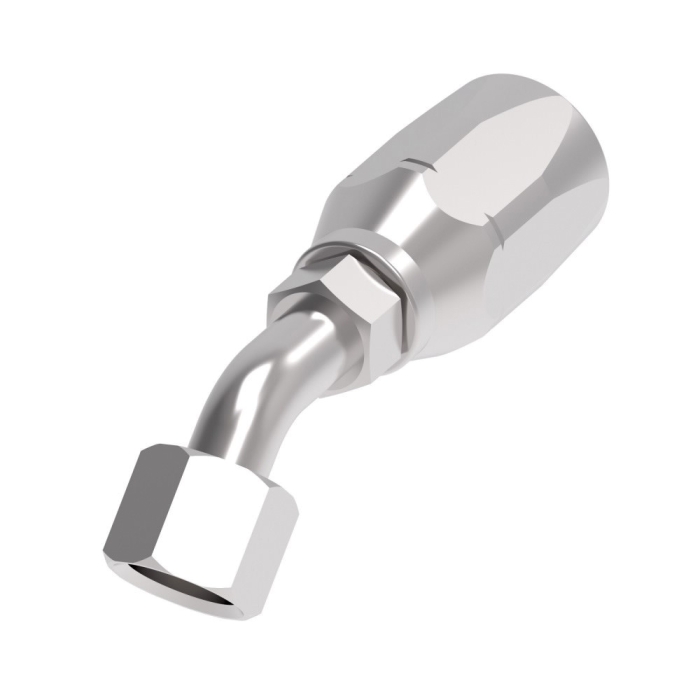

Weatherhead® 425 N Dura-Kote Carbon Steel Female SAE 37 deg JIC Flare Swivel Field Attachable Reusable 45 deg Elbow, 1/2 in

Weatherhead® 42508N-688

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: 42508N-688
  • MPN: 42508N-688
  • UPC: 725975063347
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® Field Attachable Reusable 45 deg Elbow, Series: 425 N, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: SAE 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Nominal Size: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 1-1/16 x 7/8 in, Cut-Off Factor: 0.56 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H425 Series Hoses, Dimensions: 4.08 in L x 1.17 in W x 1.51 in H, Dimension Standards: SAE 100R2

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 37 deg JIC Flare Swivel
Cut-Off Factor      :      0.56 in
Dimension Standards      :      SAE 100R2
Dimensions      :      4.08 in L x 1.17 in W x 1.51 in H
Finish      :      Zinc Clear Trivalent Chromate
Fitting Type      :      45 deg Elbow
For Use With      :      H425 Series Hoses
Gender 2      :      Female
Hex Size      :      1-1/16 x 7/8 in
Hose Dash Size      :      08
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1/2 in
Series      :      425 N
Shape      :      45 deg Elbow
Thread Size 2      :      3/4-16
  • Good selection of hose ends
  • Non-mandrel assembly

Applications: High-pressure hydraulic applications such as construction, farm implement and industrial equipment

Prop Warning AISI/SAE 12L14 Specified
