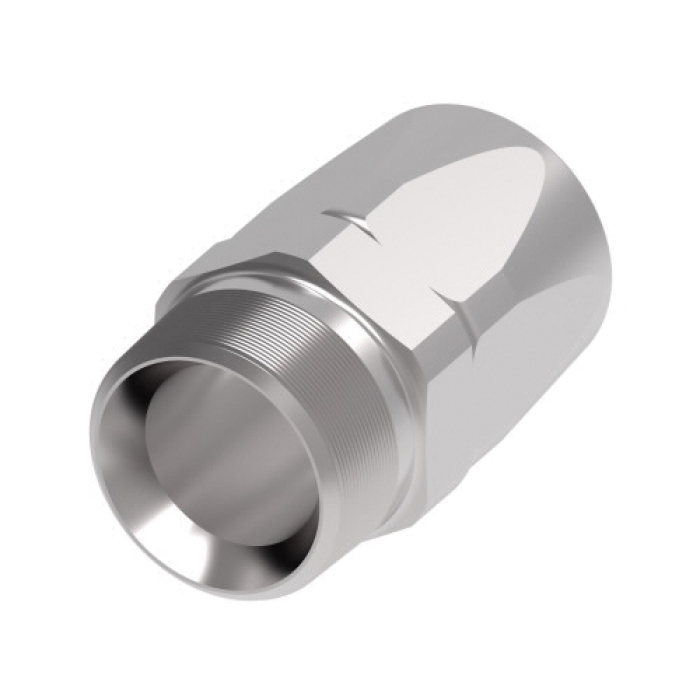

Weatherhead® 104 N Zinc-Plated Carbon Steel Female SAE 45 deg Swivel 100R1 Field Attachable Reusable Hose End, 3/8 in

Weatherhead® 10406N-406

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: 10406N-406
  • MPN: 10406N-406
  • UPC: 725975713075
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® 100R1 Field Attachable Reusable Hose End, Series: 104 N, Connection Type 1: Hose, Connection Size 1: 3/8 in, Hose Dash Size: 06, Connection Type 2: SAE 45 deg Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 5/8-18, Hex Size: 7/8 x 3/4 in, Cut-Off Factor: 1-1/2 in, Material Construction: Carbon Steel, Finish: Zinc-Plated, For Use With: H104 Series Hoses, Dimensions: 2.67 in L, Dimension Standards: SAE 100R1

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~SAE Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      SAE 45 deg Swivel
Cut-Off Factor      :      1-1/2 in
Dimension Standards      :      SAE 100R1
Dimensions      :      2.67 in L
Finish      :      Zinc-Plated
Fitting Type      :      Hose End
For Use With      :      H104 Series Hoses
Gender 2      :      Female
Hex Size      :      7/8 x 3/4 in
Hose Dash Size      :      06
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      3/8 in
Series      :      104 N
Shape      :      Straight
Thread Size 2      :      5/8-18
  • Good selection of hose ends
  • Non-mandrel assembly

Applications: Medium pressure hydraulic applications such as construction, farm implement and industrial equipment

Prop Warning AISI Specified|SAE 12L14/100R1 Certified
