Weatherhead® 10404N-606

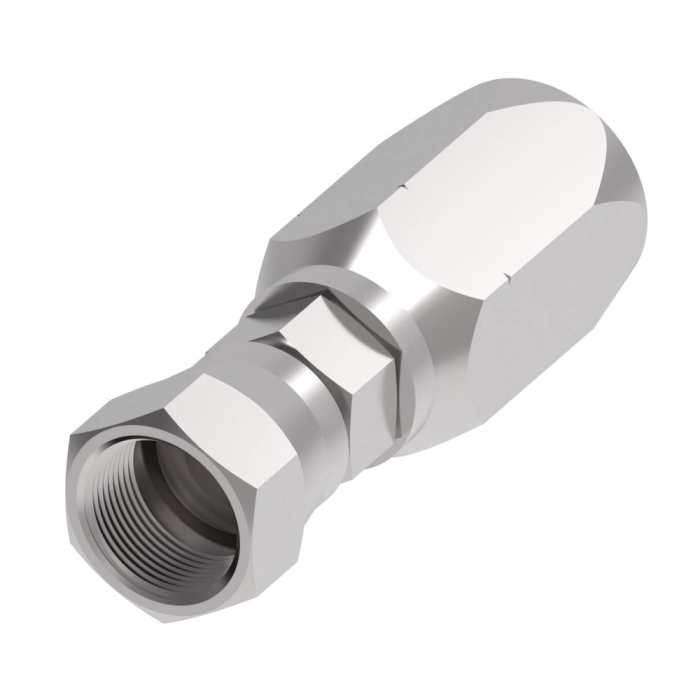

Weatherhead® 104 N Dura-Kote Carbon Steel Female 37 deg JIC Swivel 100R1 Field Attachable Reusable Hose End, 1/4 in x 3/8 in

  • Manufacturer: Danfoss Power Solutions
  • Brand: Weatherhead®
  • ARGPN: 10404N-606
  • MPN: 10404N-606
  • ARG Industrial Available for delivery: loading
  • ARG Industrial Available for pickup at Anchorage, AK Branch: loading
  • loading
  • Add to cart
  1. pin-int

Weatherhead® 100R1 Field Attachable Reusable Hose End, Series: 104 N, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 9/16-18, Hex Size: 0.69 x 0.75 in, Cut-Off Factor: 1.65 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H104 Series Hoses, Dimensions: 2.69 in L x 0.75 in W x 0.75 in H, Dimension Standards: SAE 100R1

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC Swivel
Cut-Off Factor      :      1.65 in
Dimension Standards      :      SAE 100R1
Dimensions      :      2.69 in L x 0.75 in W x 0.75 in H
Finish      :      Dura-Kote
Fitting Type      :      Hose End
For Use With      :      H104 Series Hoses
Gender 2      :      Female
Hex Size      :      0.69 x 0.75 in
Hose Dash Size      :      04
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      3/8 in
Series      :      104 N
Shape      :      Straight
Thread Size 2      :      9/16-18
  • Good selection of hose ends
  • Non-mandrel assembly

Warranty: 5 Years Limited

Applications: Medium pressure hydraulic applications such as construction, farm implement and industrial equipment

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_10404N606_CAT.pdf
