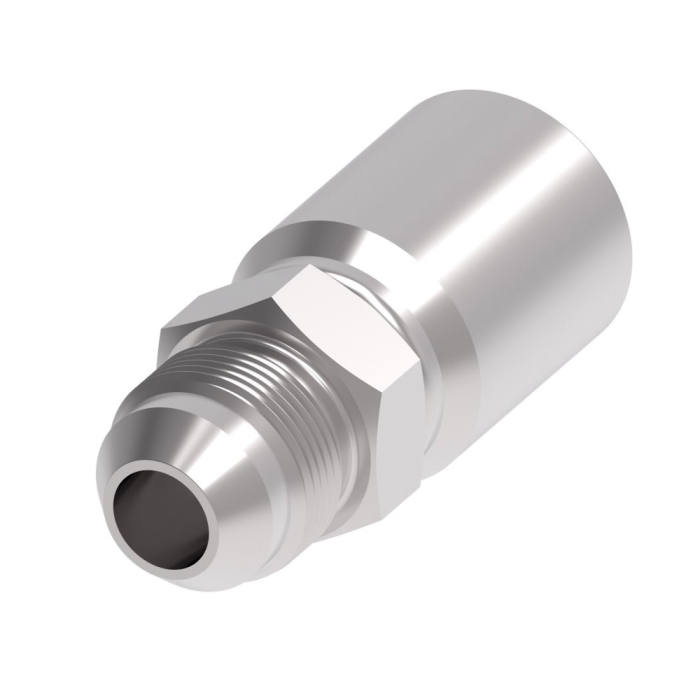

Weatherhead® 069 E Dura-Kote Carbon Steel Male 37 deg JIC Rigid Crimp Straight Hose Fitting, 3/16 x 1/4 in

Weatherhead® 06904E-504

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: 06904E-504
  • MPN: 06904E-504
  • UPC: 725975057148
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® Rigid Crimp Straight Hose Fitting, Series: 069 E, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/16 in, Hose Dash Size: 04, Connection Type 2: 37 deg JIC, Gender 2: Male, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 7/16-20, Hex Size: 1/2 in, 7000 psi, Cut-Off Factor: 1 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H059, H069, H166, H169, H229, H239, H366, and H569 Hoses, Dimensions: 1.92 in L x 0.68 in W x 0.68 in H, Dimension Standards: SAE 100R5

Connection Size 1      :      3/16 in
Connection Size 2      :      1/4 in
Connection Type      :      Hose~JIC Male
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC
Cut-Off Factor      :      1 in
Dimension Standards      :      SAE 100R5
Dimensions      :      1.92 in L x 0.68 in W x 0.68 in H
Finish      :      Zinc Clear Trivalent Chromate
Fitting Type      :      Straight Hose Fitting
For Use With      :      H059, H069, H166, H169, H229, H239, H366, and H569 Hoses
Gender 1      :      Female
Gender 2      :      Male
Hex Size      :      1/2 in
Hose Dash Size      :      03
Material      :      Steel
Material Construction      :      Carbon Steel
Nominal Size      :      1/4 in
Pressure Rating      :      7000 psi
Series      :      069 E
Shape      :      Straight
Thread Size 2      :      7/16-20

Applications: General-purpose low and medium-pressure hydraulics, truck and off-road vehicle applications

Prop Warning SAE 100R5 Certified
