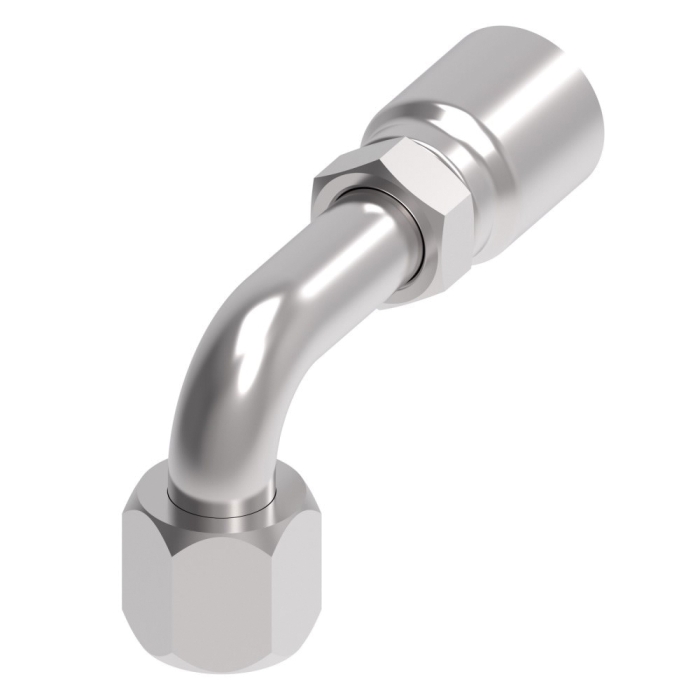

Weatherhead® Crimp Hose 90 deg Elbow, Series: 069 E, Connection Type 1: Hose, Gender 1: Female, Connection Size 1: 3/4 in, Hose Dash Size: 12, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 3/4 in, Nominal Size: 3/4 in, Thread Size 2: 1-1/16-12, Hex Size: 1/4 x 1-1/4 in, 5000 psi, Cut-Off Factor: 2.31 in, Material Construction: Carbon Steel, Finish: Dura-Kote, For Use With: H059, H069, H166, H169, H229, H239, H366, and H569 Hoses, Dimensions: 4.345 in L x 1.25 in W x 3.03 in H, Dimension Standards: SAE 100R5
| Connection Size 1 |
: |
3/4 in |
| Connection Size 2 |
: |
3/4 in |
| Connection Type |
: |
Hose~JIC Female Swivel |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
37 deg JIC Swivel |
| Cut-Off Factor |
: |
2.31 in |
| Dimension Standards |
: |
SAE 100R5 |
| Dimensions |
: |
4.345 in L x 1.25 in W x 3.03 in H |
| Finish |
: |
Zinc Clear Trivalent Chromate |
| Fitting Type |
: |
90 deg Elbow |
| For Use With |
: |
H059, H069, H166, H169, H229, H239, H366, and H569 Hoses |
| Gender 1 |
: |
Female |
| Gender 2 |
: |
Female |
| Hex Size |
: |
1/4 x 1-1/4 in |
| Hose Dash Size |
: |
12 |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Nominal Size |
: |
3/4 in |
| Pressure Rating |
: |
5000 psi |
| Series |
: |
069 E |
| Shape |
: |
90 deg Elbow |
| Thread Size 2 |
: |
1-1/16-12 |
Applications: General-purpose low and medium-pressure hydraulics, truck and off-road vehicle applications
SAE 100R5 Certified
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Weatherhead_06904E-102_CAT.pdf
