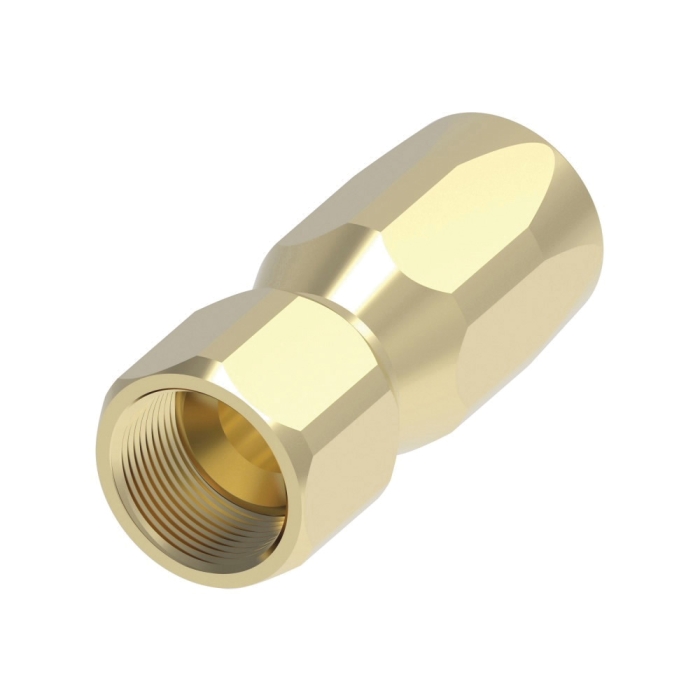

Weatherhead® 069 D Brass Female 37 deg JIC Swivel 3-Piece Field Attachable Reusable Hose End, 2-3/8 in x 2-1/2 in

Weatherhead® 06940T-640

  • Manufacturers: Danfoss Power Solutions
  • Brand Name: Weatherhead®
  • ARGPN: 06940T-640
  • MPN: 06940T-640
  • UPC: 725975057971
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Weatherhead® 3-Piece Field Attachable Reusable Hose End, Series: 069 D, Connection Type 1: Hose, Connection Size 1: 2-3/8 in, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 2-1/2 in, Nominal Size: 2-1/2 in, Thread Size 2: 3-12, Hex Size: 3-1/8 x 3-3/8 in, Cut-Off Factor: 2-1/4 in, Material Construction: Brass, For Use With: H069, H166, H169, H229, and H366 Hoses, Dimensions: 4.16 in L x 3.38 in W x 3.38 in H, Dimension Standards: SAE 100R5

Connection Size 1      :      2-3/8 in
Connection Size 2      :      2-1/2 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC Swivel
Cut-Off Factor      :      2-1/4 in
Dimension Standards      :      SAE 100R5
Dimensions      :      4.16 in L x 3.38 in W x 3.38 in H
Fitting Type      :      Hose End
For Use With      :      H069, H166, H169, H229, and H366 Hoses
Gender 2      :      Female
Hex Size      :      3-1/8 x 3-3/8 in
Material      :      Brass
Material Construction      :      Brass
Nominal Size      :      2-1/2 in
Series      :      069 D
Shape      :      Straight
Thread Size 2      :      3-12
  • Very popular in heavy-duty truck markets
  • Can be used with a variety of hoses allowing for a diverse number of applications

Applications: Medium pressure and high-temperature hose lines a variety of applications including truck, industrial and small engine where temperature may be a problem

Prop Warning AISI Specified|SAE 12L14/100R5 Certified
