Tramec Sloan S66PMT-8-8
  1. pin-int

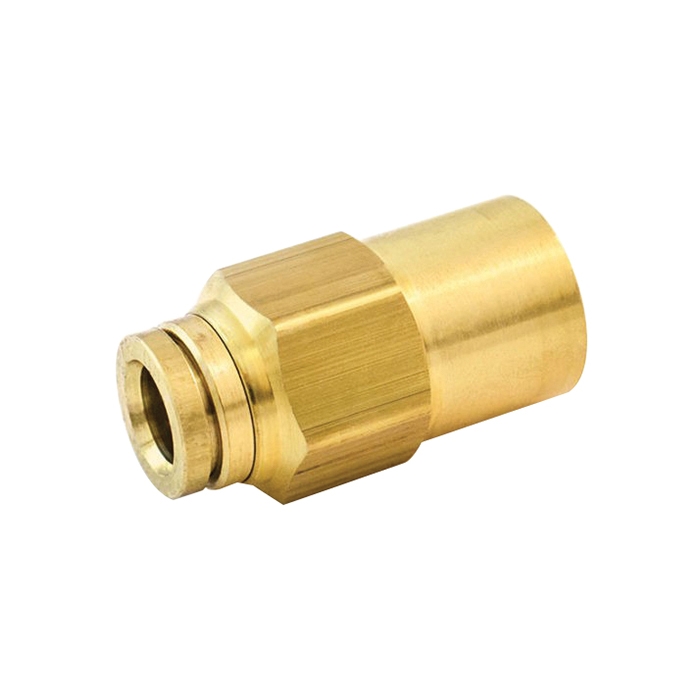

Tramec Sloan S66PMT Brass Connector, 1/2 in Push-to-Connect x 1/2 in FNPT

Tramec Sloan S66PMT-8-8

  • Manufacturers: Tramec Sloan
  • Brand Name: Tramec Sloan
  • ARGPN: PCD66-8-8
  • MPN: S66PMT-8-8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Tramec Sloan Connector, Series: S66PMT, Connection Type 1: Push-to-Connect, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, 145 psi, Material Construction: Brass, -40 to 225 deg F, For Use With: SAE J844 Air Brake Tubing

Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      NPT
For Use With      :      SAE J844 Air Brake Tubing
Gender 2      :      Female
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      145 psi
Series      :      S66PMT
Shape      :      Connector
Temperature Rating      :      -40 to 225 deg F
  • Easy to assemble
  • Designed to resist mechanical pull-out
  • Can be assembled and disassembled over and over again
  • Swivel for installation purposes only

Prop Warning DOT FMVSS 571.106 Approved|SAE J1131/J2494-1/J2494-3 Certified

  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Tramec Sloan_S62PMT-10_SS.pdf
