Tramec Sloan S269PMTNS-4-6
  1. pin-int

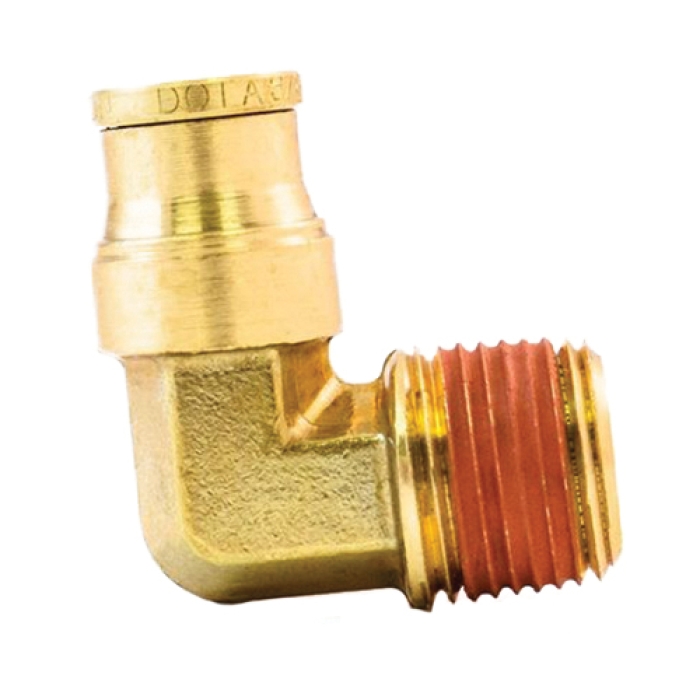

Tramec Sloan S269PMTNS Brass 90 deg Reducing Elbow, 1/4 in Push-to-Connect x 3/8 in MNPT

Tramec Sloan S269PMTNS-4-6

  • Manufacturers: Tramec Sloan
  • Brand Name: Tramec Sloan
  • ARGPN: PCD69-4-6
  • MPN: S269PMTNS-4-6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Tramec Sloan 90 deg Reducing Elbow, Series: S269PMTNS, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, 145 psi, Material Construction: Brass, -40 to 225 deg F, For Use With: SAE J844 Air Brake Tubing

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      NPT
For Use With      :      SAE J844 Air Brake Tubing
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      145 psi
Series      :      S269PMTNS
Shape      :      90 deg Reducing Elbow
Temperature Rating      :      -40 to 225 deg F
  • Easy to assemble
  • Designed to resist mechanical pull-out
  • Can be assembled and disassembled over and over again

Prop Warning DOT FMVSS 571.106 Approved|SAE J1131/J2494-1/J2494-3 Certified

  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Tramec Sloan_S62PMT-10_SS.pdf
