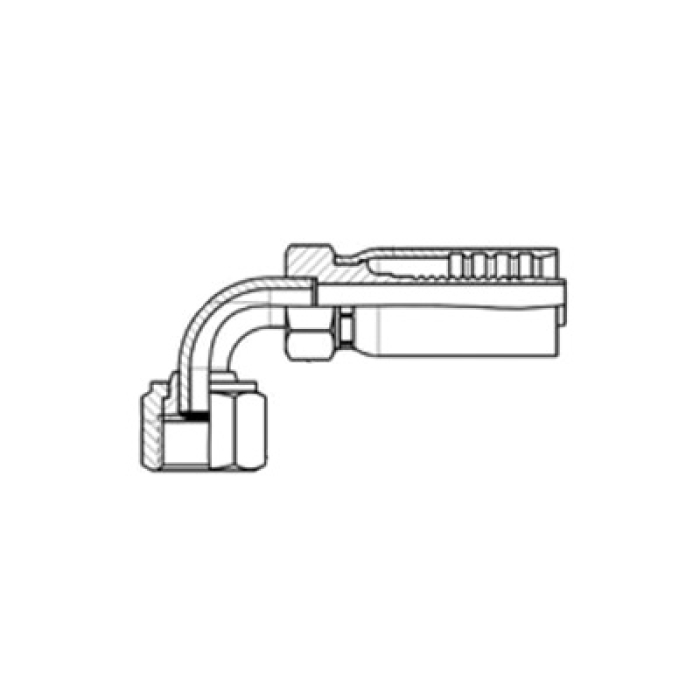

Synflex® Permanent Swage 90 deg Short Drop Elbow, Series: 90H, Connection Type 1: Hose, Connection Size 1: 1/4 in, Hose Dash Size: 04, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 1/4 in, Nominal Size: 1/4 in, Thread Size 2: 9/16-18, Hex Size: 5/8 x 11/16 in, Cut-Off Factor: 1-1/4 in, Material Construction: Carbon Steel, Finish: Zinc-Plated, For Use With: 3R80 (-03 to -12), 3E80 (-03 to -12), 3630 (-16), and 3440 (-12 to -16) Hoses, Dimensions: 2.31 in L
| Connection Size 1 |
: |
1/4 in |
| Connection Size 2 |
: |
1/4 in |
| Connection Type |
: |
Hose~ORFS Female Swivel |
| Connection Type 1 |
: |
Hose |
| Connection Type 2 |
: |
ORFS Swivel |
| Cut-Off Factor |
: |
1-1/4 in |
| Dimensions |
: |
2.31 in L |
| Finish |
: |
Zinc-Plated |
| Fitting Type |
: |
90 deg Elbow |
| For Use With |
: |
3R80 (-03 to -12), 3E80 (-03 to -12), 3630 (-16), and 3440 (-12 to -16) Hoses |
| Gender 2 |
: |
Female |
| Hex Size |
: |
5/8 x 11/16 in |
| Hose Dash Size |
: |
04 |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Nominal Size |
: |
1/4 in |
| Series |
: |
90H |
| Shape |
: |
90 deg Elbow |
| Thread Size 2 |
: |
9/16-18 |
- Permanently attached, plated steel, high pressure
-
Catalog
https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Synflex_90304-045540-0_CAT.pdf
