Stucchi 806501002 F.VEP9P 3/8 NPT

Stucchi 806501002 F.VEP9P 3/8 NPT

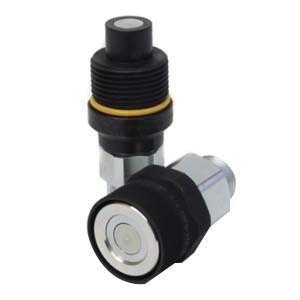

Stucchi VEP Carbon Steel Flat Face Interchange Coupling, 3/8 in Quick Connect x 3/8 in FNPT

  1. pin-int

Stucchi Flat Face Interchange Coupling, Series: VEP, Connection Type 1: Quick Connect, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: M33 x 2, Hex Size: 1.18 in, 14500 psi Burst, Material Construction: Carbon Steel, Dimensions: 2.59 in L x 1.65 in W, Dimension Standards: ISO 16028, 100 deg C

Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Quick Connect
Connection Type 2      :      NPT
Dimension Standards      :      ISO 16028
Dimensions      :      2.59 in L x 1.65 in W
Gender 2      :      Female
Hex Size      :      1.18 in
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      14500 psi Burst
Series      :      VEP
Shape      :      Coupling
Temperature Rating      :      100 deg C
Thread Size 2      :      M33 x 2

The VEP Series is a popular solution for hydraulic circuit applications subject to high-pressure impulses and circuits which experience high residual or trapped pressure in a line. Thread-to-connect design eliminates premature wear or brinelling, a patented internal valve allows connection/disconnection with high residual pressures and the Flat Face design avoids loss of hydraulic fluid and contamination into the circuit. A yellow O-ring indicator makes the VEP Series even easier to work with.

  • Eliminates brinelling, reduces leakage
  • Saves time changing tools
  • NBR seal
  • Connection under residual pressure is allowed in both sides, the internal valve system allows an easy connection and the disconnection is included
  • Flat face is easy to clean, reducing the inclusion of contamination to the hydraulic circuit
  • Minimal fluid loss during disconnection, reducing fluid loss to the environment
  • Minimal air inclusion during connection/disconnection
  • Patented internal valve design creates minimal pressure drop, maintaining circuit efficiency in the system
  • Internal pressure release valve system allows an easy connection with high internal residual pressure
  • The modular design allows flexibility with a wide range of configurations
  • High resistance with impulse pressures
  • Safe and simple to use

Applications: For all construction equipment applications with higher pressure requirements or connection/disconnection issues with tool attachments under residual pressure, all large equipment needing junction points in circuit: cranes, drilling machines, oil field, well head drives, porta-power, excavators with auxiliary line for attachments
