SHF SHFBW-24-24FJ90

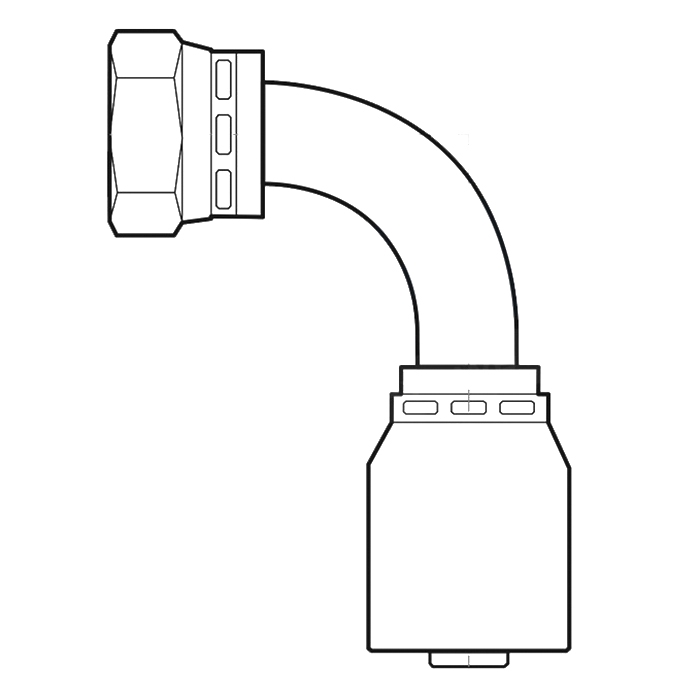

SHF BW Series 316 Stainless Steel Female 37 deg JIC Swivel 90 deg Crimp Elbow, 1-1/2 in

Manufacturer: SHF
Brand: SHF
ARGPN: SHFBW24-24FJ90

MPN: SHFBW-24-24FJ90

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Add to cart

Description
Specs
Documents

SHF 90 deg Crimp Elbow, Series: BW, Connection Type 1: Hose, Connection Size 1: 1-1/2 in, Hose Dash Size: 24, Connection Type 2: 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1-1/2 in, Nominal Size: 1-1/2 in, Thread Size 2: 1-7/8-12, Cut-Off Factor: 4.592 in, Material Construction: 316 Stainless Steel, Dimensions: 7.039 in L

Connection Size 1	:	1-1/2 in
Connection Size 2	:	1-1/2 in
Connection Type	:	Hose~JIC Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	37 deg JIC Swivel
Cut-Off Factor	:	4.592 in
Dimensions	:	7.039 in L
Fitting Type	:	90 deg Elbow
Gender 2	:	Female
Hose Dash Size	:	24
Material	:	Stainless Steel
Material Construction	:	316 Stainless Steel
Nominal Size	:	1-1/2 in
Series	:	BW
Shape	:	90 deg Elbow
Thread Size 2	:	1-7/8-12
