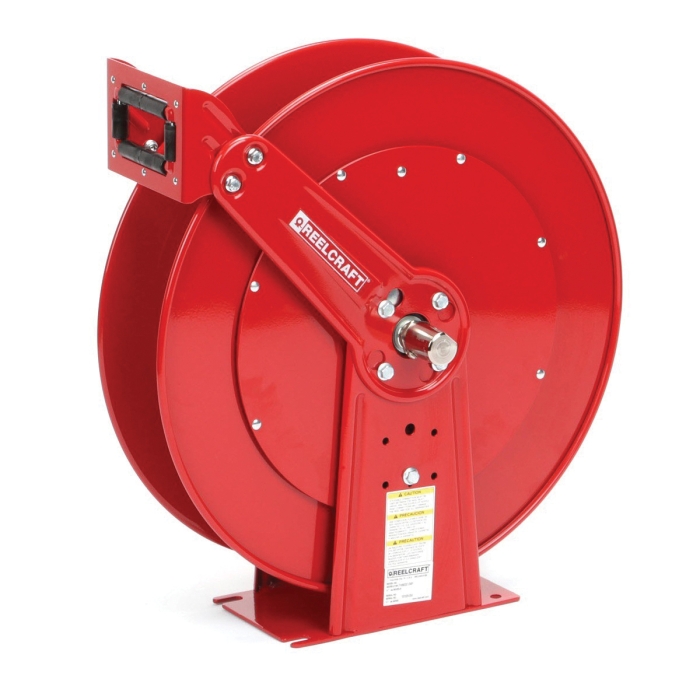

Reelcraft® TH80000 Red Carbon Steel Heavy-Duty Medium-Pressure Twin Hydraulic Hose Reel, 1/2 in ID x 50 ft, 3000 psi

Reelcraft® TH88000 OMP

  • Manufacturers: Reelcraft Industries
  • Brand Name: Reelcraft®
  • ARGPN: TH88000 OMP
  • MPN: TH88000 OMP
  • UPC: 699567003557
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Reelcraft® Heavy-Duty Medium-Pressure Twin Hydraulic Hose Reel, Series: TH80000, 50 ft Length Hose, 1/2 in Hose Inside Diameter, 0.85 in Hose Outside Diameter, Inlet Size: 1/2 in FPT, Outlet Size: 1/2 in MPT, Winding Method: Spring Retractable, Material Construction: Carbon Steel, Finish: Powder-Coated, Red, Ceiling, Wall Mount, 210 deg F, 3000 psi, Dimensions: 25-3/8 in L x 24 in W x 12-7/8 in H

Color      :      Red
Dimensions      :      25-3/8 in L x 24 in W x 12-7/8 in H
Finish      :      Powder-Coated
Hose Inside Diameter      :      1/2 in
Hose Length      :      50 ft
Hose Outside Diameter      :      0.85 in
Inlet Size      :      1/2 in FPT
Material      :      Steel
Material Construction      :      Carbon Steel
Mounting Type      :      Ceiling, Wall
Outlet Size      :      1/2 in MPT
Pressure Rating      :      3000 psi
Product Type      :      Hydraulic Hose Reel
Series      :      TH80000
Temperature Rating      :      210 deg F
Winding Method      :      Spring Retractable

The hydraulic Series hose reel incorporates contemporary engineering and manufacturing techniques to give trouble-free performance. Used for medium pressure hydraulic applications, series TH hose reels are ideal for operating hydraulic cylinders, tools and equipment. Reels are all steel construction and compact for applications with critical space requirements.

  • Quality finish and corrosion-resistant - individually powder-coated components along with the composite spool offers the maximum protection from premature corrosion
  • Long life drive spring - declutching arbor virtually eliminates possibility of spring damage due to reverse winding
  • Only the highest-quality spring steel is used and conditioned to ensure there are no imperfections offering maximum service life
  • Constant tension or pos-i-latch spool mechanism
  • Compact design for critical space requirements
  • Open style

Applications: For cranes, construction equipment, hydraulic tools, vehicle extraction tools, aerial device, hydraulic cylinders, tree cutters, digger derricks, railroad and maintenance tools

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_7850_OLP_CAT_NEW2021.pdf
  • pdfInstallation Instructions https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_TH88000_OMP_II.pdf
  • pdfTechnical Drawing/Parts Diagram https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Reelcraft_TH88000_OMP_TD.pdf
