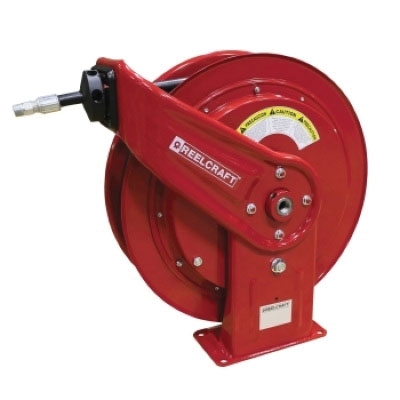

Reelcraft® Heavy-Duty Low Pressure Air and Water Hose Reel, Series: HD70000, 75 ft Length Hose, 3/8 in Hose Inside Diameter, 0.6 in Hose Outside Diameter, Connection Type: FPT x FPT, Inlet Size: 1/2 in, Outlet Size: 1/2 in, Winding Method: Spring Retractable, Material Construction: Steel, Finish: Powder-Coated, Red, 150 deg F, 300 psi, Dimensions: 20-1/4 in L x 19-3/4 in W x 8-1/4 in H, Includes: Hose
Color |
: |
Red |
Connection Type |
: |
FPT x FPT |
Dimensions |
: |
20-1/4 in L x 19-3/4 in W x 8-1/4 in H |
Finish |
: |
Powder-Coated |
Hose Inside Diameter |
: |
3/8 in |
Hose Length |
: |
75 ft |
Hose Outside Diameter |
: |
0.6 in |
Includes |
: |
Hose |
Inlet Size |
: |
1/2 in |
Material |
: |
Steel |
Material Construction |
: |
Steel |
Outlet Size |
: |
1/2 in |
Pressure Rating |
: |
300 psi |
Product Type |
: |
Air and Water Hose Reel |
Series |
: |
HD70000 |
Temperature Rating |
: |
150 deg F |
Winding Method |
: |
Spring Retractable |
Reelcraft® new Series HD70000 hose reels incorporate a heavy-duty base design, all steel construction and a baked-on powder-coat finish to produce a rugged, corrosion-resistant product. A newly redesigned latching mechanism provides longer service life of the latch components. The one-piece guide roller design and stainless steel pins offer greater strength and easier serviceability. The high-quality, die-cast aluminum hub and two sealed ball bearings produce a smoother spool rotation and easier operation.
- Compact design reels are 25% smaller than our heavy-duty Series 80000 reels
- Guide rollers - the 1-piece design and stainless steel pins offer greater strength and easier serviceability
- The high-quality, die-cast aluminum hub and two-sealed ball bearings produce a smoother spool rotation and easier operation
- Made in USA
Warranty: 2 Years Limited
