Prevost® RPQ MR4122
  1. pin-int

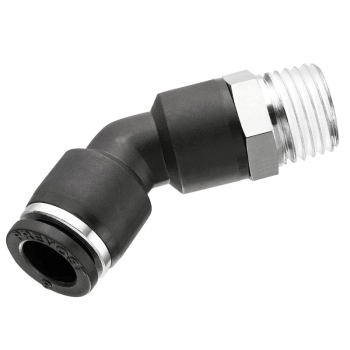

Prevost® RPQ MR Nickel-Plated Brass/Polymer 45 deg Swivel Elbow, 1/4 in Push-to-Connect x 3/8 in MNPT

Prevost® RPQ MR4122

  • Manufacturers: Prevost
  • Brand Name: Prevost®
  • ARGPN: PCC79S-4-6
  • MPN: RPQ MR4122
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Prevost® 45 deg Swivel Elbow, Series: RPQ MR, Connection Type 1: Push-to-Connect, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, 0 - 145 psi, Material Construction: Brass/Polymer, Finish: Nickel-Plated, Dimensions: 1.201 in L, 32 - 140 deg F, For Use With: 1/4 in OD Tubing

Connection Size 1      :      1/4 in
Connection Size 2      :      3/8 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      NPT
Dimensions      :      1.201 in L
Finish      :      Nickel-Plated
For Use With      :      1/4 in OD Tubing
Gender 2      :      Male
Material      :      Brass
Material Construction      :      Brass/Polymer
Pressure Rating      :      0 - 145 psi
Series      :      RPQ MR
Shape      :      45 deg Elbow
Temperature Rating      :      32 - 140 deg F
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Prevost_Corporation_RPQ_MR3822_SS.pdf
