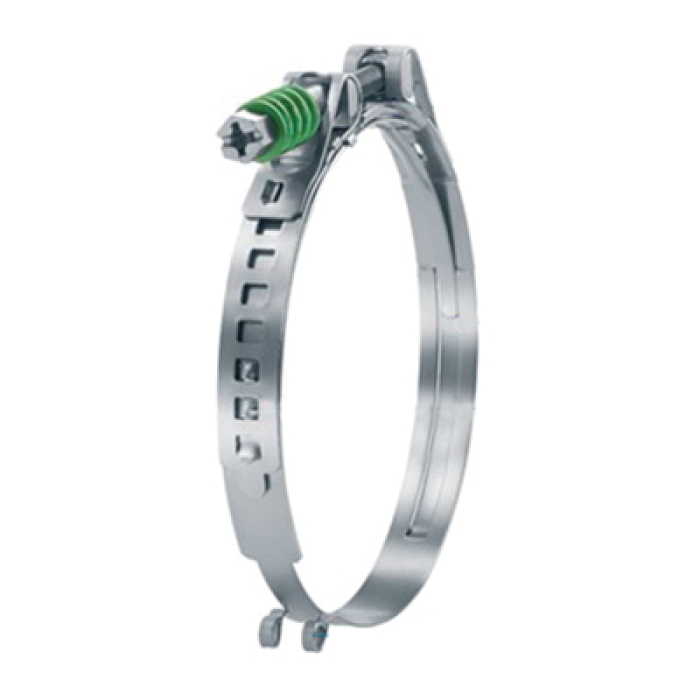

Oetiker® Stepless® 178 Stainless Steel Spring Screw Hose Clamp, 47.5 - 55 mm, 9 mm W, 0.6 mm Thick

  1. pin-int

Oetiker® Stepless® Spring Screw Hose Clamp, Series: 178, 55 mm Maximum Clamp Diameter, 47.5 mm Minimum Clamp Diameter, Material Construction: Stainless Steel, 9 mm Width, 0.6 mm Thickness

Material      :      Stainless Steel
Material Construction      :      Stainless Steel
Maximum Clamp Diameter      :      55 mm
Minimum Clamp Diameter      :      47.5 mm
Product Type      :      Hose Clamp
Series      :      178
Sub Brand      :      Stepless®
Thickness      :      0.6 mm
Width      :      9 mm
  • Uniform 360 deg compression and uniform surface pressure
  • Clamp can be adjusted to several different nominal diameters
  • Concentrated transmission of clamping force
  • Specially formed strip edges - reduced risk of damage to parts being clamped
  • Self-tensioning compensates for thermal cycle diameter changes
  • Combination of hexagon head with cross-socket
  • The spring on Oetiker® self-tensioning StepLess® screw clamp serves as a compensation element to accommodate changes in diameter resulting from thermal expansion and contraction or vibration
  • This feature gives screw clamps optimum sealing performance even in applications where there are strong thermal influences
  • Oetiker® StepLess® screw clamps and self-tensioning StepLess® screw clamps should be tightened to the optimum torque as specified in the guide
  • This torque takes into account the required degree of compression, the necessary radial force and the maximum torque resistance of the screw and clamp band
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Oetiker_17800171_CAT.pdf
  • pdfCut sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Oetiker_17800171_SS.pdf
