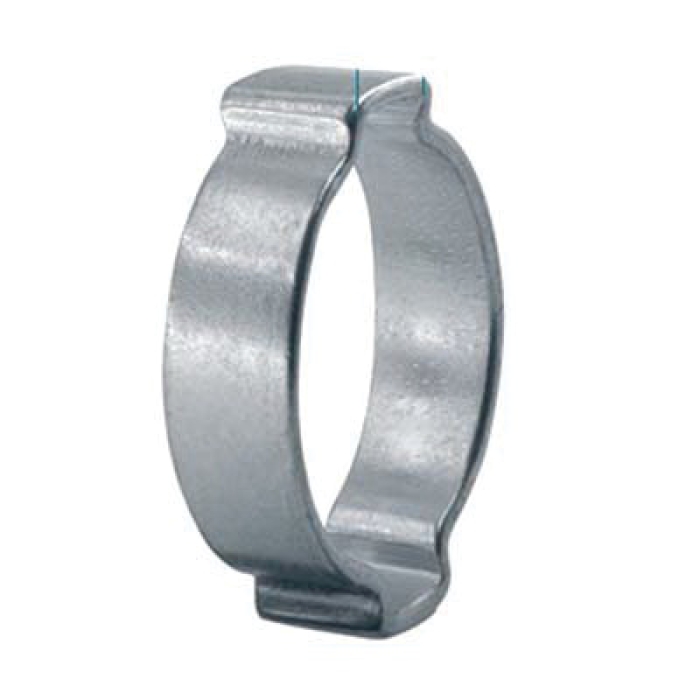

Oetiker® 2-Ear Hose Clamp, Series: 101, Nominal Size: 3/16 in, 5 mm Maximum Clamp Diameter, 3.4 mm Minimum Clamp Diameter, Material Construction: Steel, Finish: Zinc-Plated, 0.197 in Width, 0.026 in Thickness
| Finish |
: |
Zinc-Plated |
| Material |
: |
Steel |
| Material Construction |
: |
Steel |
| Maximum Clamp Diameter |
: |
5 mm |
| Minimum Clamp Diameter |
: |
3.4 mm |
| Nominal Size |
: |
3/16 in |
| Product Type |
: |
Hose Clamp |
| Series |
: |
101 |
| Thickness |
: |
0.026 in |
| Width |
: |
0.197 in |
The ears of these clamps do not have a dimple and nearly double the clamping range, compared to the one ear clamp. Two ears provide a degree of elasticity to accommodate changes in size of the parts being joined, such as that which may be caused by thermal expansion or vibration. Installation techniques are similar to those for one ear clamps, but the force applied when closing the second ear may react against the opposing closed ear and make a second crimping operation necessary. For perfect sealing, the ears must be adequately closed during installation.
- Two ear version extended clamping range
- Compact one piece clamp for robust, secure connections
- Clamp ear fast and simple installation, visible deformation provides evidence of proper closure
- Deburred edges reduced risk of damage to parts being clamped
DIN 1.0338|SAE 1008/1010 Certified
-
