Oetiker® 10100001

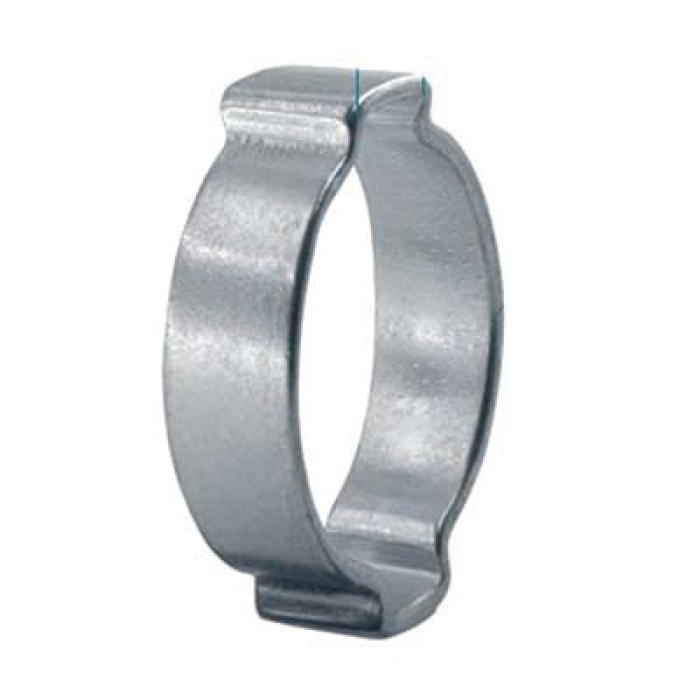

Oetiker® 101 Zinc-Plated Steel 2-Ear Hose Clamp, 11/64 in, 0.138 in W, 0.02 in Thick

  1. pin-int

Oetiker® 2-Ear Hose Clamp, Series: 101, Nominal Size: 11/64 in, 4.5 mm Maximum Clamp Diameter, 3.5 mm Minimum Clamp Diameter, Material Construction: Steel, Finish: Zinc-Plated, 0.138 in Width, 0.02 in Thickness

Finish      :      Zinc-Plated
Material      :      Steel
Material Construction      :      Steel
Maximum Clamp Diameter      :      4.5 mm
Minimum Clamp Diameter      :      3.5 mm
Nominal Size      :      11/64 in
Product Type      :      Hose Clamp
Series      :      101
Thickness      :      0.02 in
Width      :      0.138 in

The ears of these clamps do not have a dimple and nearly double the clamping range, compared to the one ear clamp. Two ears provide a degree of elasticity to accommodate changes in size of the parts being joined, such as that which may be caused by thermal expansion or vibration. Installation techniques are similar to those for one ear clamps, but the force applied when closing the second ear may react against the opposing closed ear and make a second crimping operation necessary. For perfect sealing, the ears must be adequately closed during installation.

  • Two ear version extended clamping range
  • Compact one piece clamp for robust, secure connections
  • Clamp ear fast and simple installation, visible deformation provides evidence of proper closure
  • Deburred edges reduced risk of damage to parts being clamped
