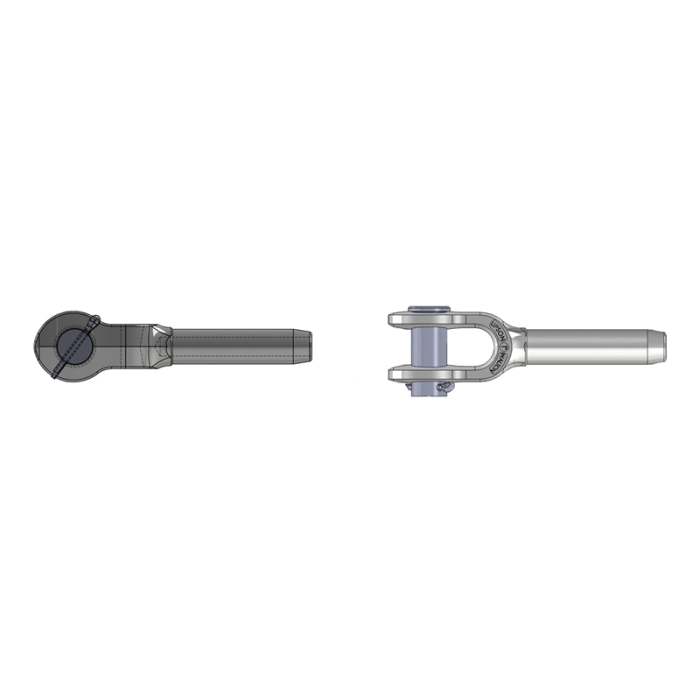

Muncy™ Upson-Walton™ 40125002 C-1035 Steel Open Swage Socket, For 1-1/4 in Rope Size

Muncy™ 40125002

  • Manufacturers: Muncy Industries
  • Brand Name: Muncy™
  • ARGPN: 40125002
  • MPN: 40125002
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Muncy™ Upson-Walton™ Open Swage Socket, Material Construction: C-1035 Steel, Dimensions: 19-7/16 in L, For Use With: 1-1/4 in Rope Size

Dimensions      :      19-7/16 in L
For Use With      :      1-1/4 in Rope Size
Material      :      Steel
Material Construction      :      C-1035 Steel
Product Type      :      Open Swage Socket
Sub Brand      :      Upson-Walton™

Muncy manufactures the Upson-Walton swage socket product line. Forged, we use special steel with mechanical and physical properties that enhance swaging, durability and strength. For open swage sockets, the socket pin and cotter fit tightly into the socket's ears for optimal surface contact for durability. We take pride when we manufacture our swage sockets, perhaps why we are among the largest producers of swage sockets in the world. Upson-Walton swage sockets are used all over the world in many applications. Swage sockets are used in lattice type or latticework boom cranes. Some crane manufacturers have specified swage sockets drilled for the next size rope for weight savings. Swage sockets can be found in bridges, stadiums and many structures. Our sockets also come in stainless steel for certain applications. Our swage socket pins are manufactured from select steel with proper chemical and physical properties. We machine our cotter pin holes to position the pin through the ears with a tight, yet practical fit. Muncy also offer socket pins with threaded ends for nuts and/or a cotter, also called a safety bolt, nut and cotter pin.

  • Forged from special C-1035 steel, fine grain, special bar quality
  • Spheroidized annealed for cold swaging
  • Sockets properly applied have an efficiency rating of 100%, this rating is based on the catalog strength of wire rope
