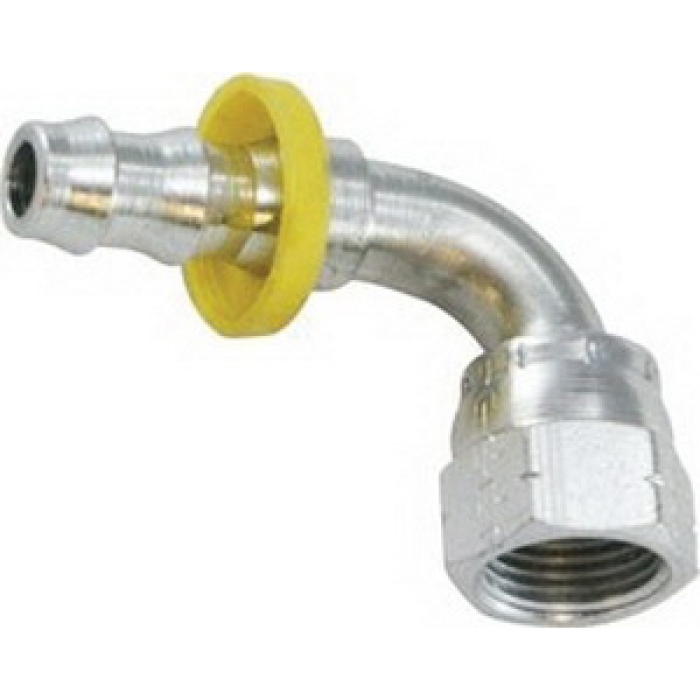

Midland Metals 30480 Zinc-Plated Steel Push-On 90 deg Elbow, 1/4 in Hose Barb x 7/16 in Female SAE 45 deg/37 deg JIC

Midland Metals 30480

  • Manufacturers: Midland Metal Manufacturing
  • Brand Name: Midland Metals
  • ARGPN: JF-90-04-04
  • MPN: 30480
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Midland Metals Push-On 90 deg Elbow, Connection Type 1: Hose Barb, Connection Size 1: 1/4 in, Connection Type 2: SAE 45 deg/37 deg JIC, Gender 2: Female, Connection Size 2: 7/16 in, Thread Size 2: 7/16-20 UNF, 150 psi, Material Construction: Steel, Finish: Zinc-Plated

Connection Size 1      :      1/4 in
Connection Size 2      :      7/16 in
Connection Type 1      :      Hose Barb
Connection Type 2      :      SAE 45 deg/37 deg JIC
Finish      :      Zinc-Plated
Gender 2      :      Female
Material      :      Steel
Material Construction      :      Steel
Pressure Rating      :      150 psi
Shape      :      90 deg Elbow
Thread Size 2      :      7/16-20 UNF
  • Easy assembly, no clamps needed

Applications: For low-pressure air, fuel, lube and oil lines

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
