Midland Metals 20309 1271X3

Midland Metals 20309 1271X3

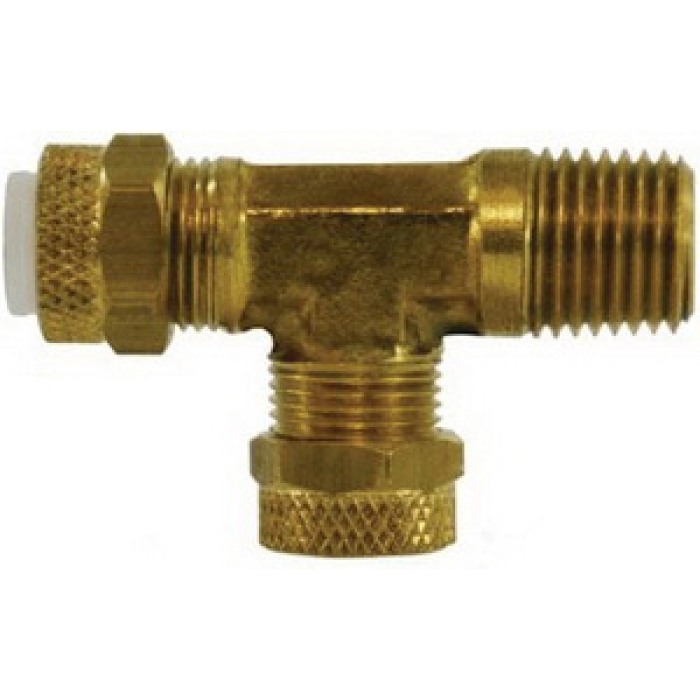

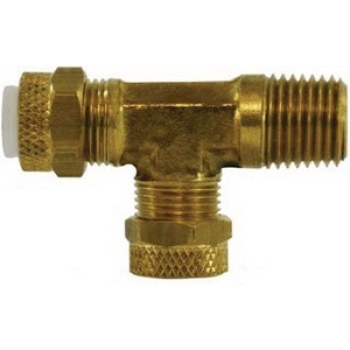

Midland Metals 20309 Brass Flareless Run Tee, 3/16 in Tube x 3/16 in Tube x 1/8 in MNPTF

  1. pin-int

Midland Metals Flareless Run Tee, Connection Type 1: Tube, Connection Size 1: 3/16 in, Thread Size 1: 3/8-24, Connection Type 2: Tube, Connection Size 2: 3/16 in, Thread Size 2: 3/8-24, Connection Type 3: NPTF, Gender 3: Male, Connection Size 3: 1/8 in, Thread Size 3: 5/16-24, Material Construction: Brass, -65 to 250 deg F, For Use With: Aluminum and Copper Tubing

California residents see Prop 65 WARNINGS

Connection Size 1      :      3/16 in
Connection Size 2      :      3/16 in
Connection Size 3      :      1/8 in
Connection Type 1      :      Tube
Connection Type 2      :      Tube
Connection Type 3      :      NPTF
For Use With      :      Aluminum and Copper Tubing
Gender 3      :      Male
Material      :      Brass
Material Construction      :      Brass
Shape      :      Tee
Temperature Rating      :      -65 to 250 deg F
Thread Size 1      :      3/8-24
Thread Size 2      :      3/8-24
Thread Size 3      :      5/16-24
  • Built-in stainless steel tube support
  • Excellent vibration resistance
  • No flaring of tubing required
  • Easy installation, captive sleeve, pre-assembled for installation and can be reassembled
  • Nuts rotate around the sleeve during tightening, preventing twisting of tubing
  • Interchangeable with Poly-Flo® tube fittings
  • Brass sleeve

Applications: For pneumatic instrumentation circuits, lubricant and cooling lines
