Midland Metals 20155 PCB65-5

Midland Metals 20155 PCB65-5

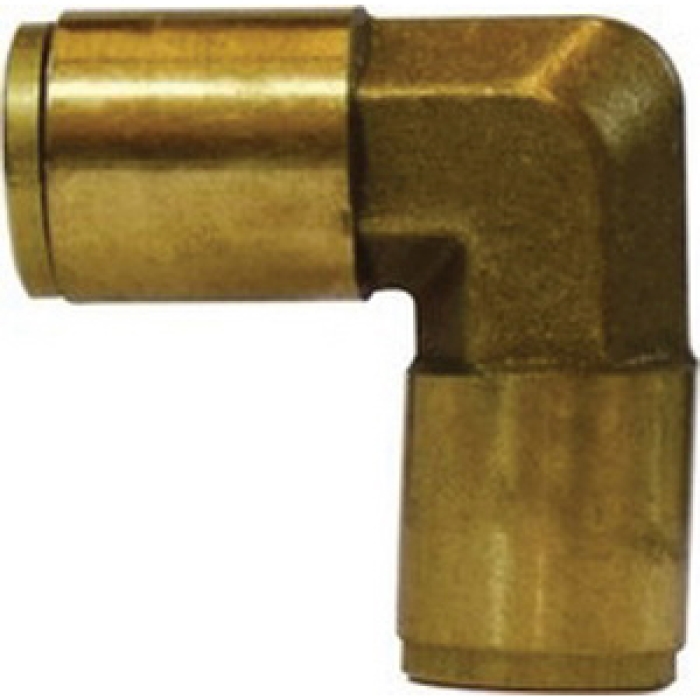

Midland Metals 20155 Brass Union Elbow, 5/16 in Push-to-Connect

  1. pin-int

Midland Metals Union Elbow, Connection Type 1: Push-to-Connect, Connection Size 1: 5/16 in, Connection Type 2: Push-to-Connect, Connection Size 2: 5/16 in, 290 psi, Material Construction: Brass, -10 to 200 deg F

California residents see Prop 65 WARNINGS

Connection Size 1      :      5/16 in
Connection Size 2      :      5/16 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      Push-to-Connect
Material      :      Brass
Material Construction      :      Brass
Pressure Rating      :      290 psi
Shape      :      Elbow
Temperature Rating      :      -10 to 200 deg F
  • Quick connect, simply push tubing in, no tools
  • Saves up to 75% of assembly time compared to standard air compression fittings
  • Quick disconnect, hold two fingers on insert and pull tubing out, no tools required
  • Reusable, connect and disconnect numerous times
  • Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
  • Positive seal, no leaks
  • After tubing is inserted, seal is made
  • Versatile, Buna-N O-rings standard
  • Secure tube retention, pulling on tubing only serves to tighten the connection
  • Self contained assembly, no loose parts, brass body and insert
  • Pre-applied Teflon® based pipe sealant on all male pipe threads, saving customer additional labor
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
