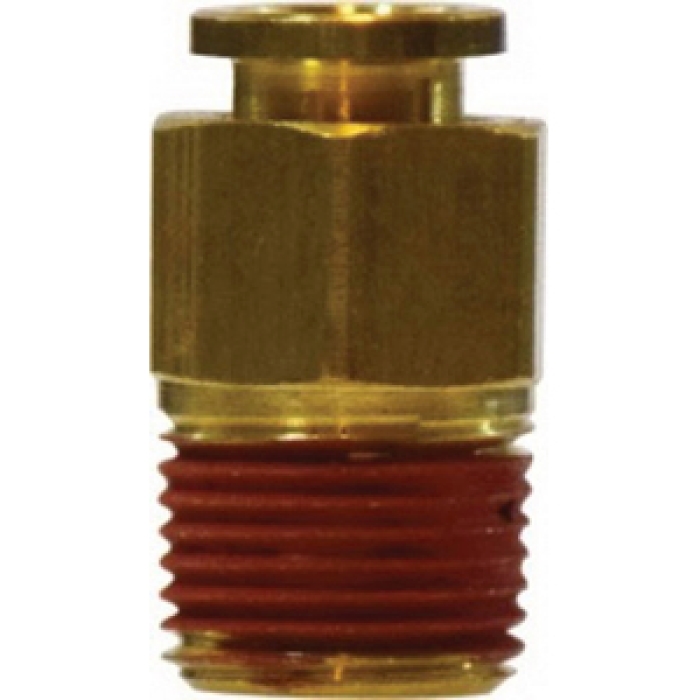

Midland Metals Straight Connector with Gaskets, Connection Type 1: Push-to-Connect, Connection Size 1: 3/16 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 10-32, Hex Size: 0.37 in, 290 psi, Material Construction: Brass, -10 to 200 deg F
| Connection Size 1 |
: |
3/16 in |
| Connection Size 2 |
: |
10-32 |
| Connection Type 1 |
: |
Push-to-Connect |
| Connection Type 2 |
: |
NPTF |
| Gender 2 |
: |
Male |
| Hex Size |
: |
0.37 in |
| Material |
: |
Brass |
| Material Construction |
: |
Brass |
| Pressure Rating |
: |
290 psi |
| Shape |
: |
Straight Connector |
| Temperature Rating |
: |
-10 to 200 deg F |
- Quick-connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
- Quick-disconnect, hold two fingers on insert and pull tubing out, no tools required
- Reusable, connect and disconnect numerous times
- Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
- Positive seal, no leaks, after tubing is inserted, seal is made
- Secure tube retention, pulling on tubing only serves to tighten the connection
- Self contained assembly, no loose parts, brass body and insert
- NPTF with Teflon®-based sealant pre-applied
- Straight connectors have interior hex for Allen key tightening where space is limited, no need to use a wrench
- Furnished with gaskets
