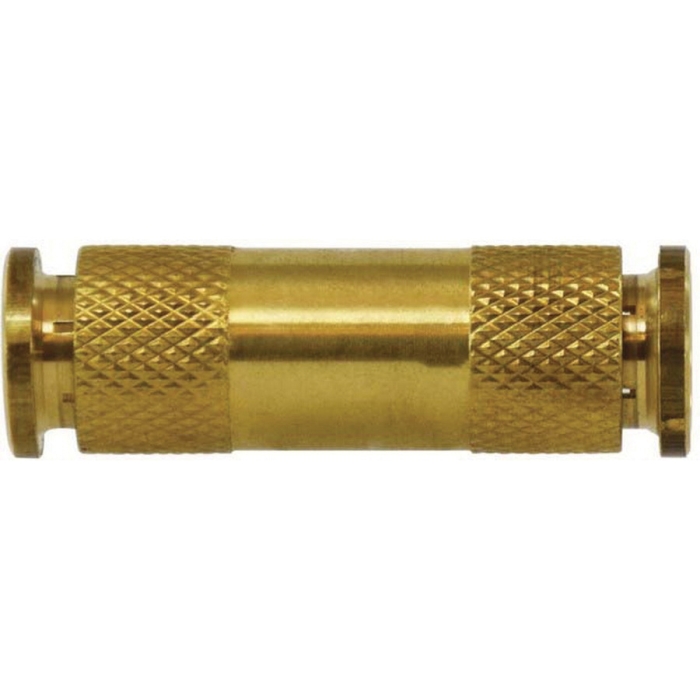

Midland Metals 20018 Brass Union Connector, 5/32 in Push-to-Connect

Midland Metals 20018

  • Manufacturers: Midland Metal Manufacturing
  • Brand Name: Midland Metals
  • ARGPN: PCB62-2.5
  • MPN: 20018
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days
  • Prop WarningCalifornia residents see Prop 65 WARNINGS

Midland Metals Union Connector, Connection Type 1: Push-to-Connect, Connection Size 1: 5/32 in, Connection Type 2: Push-to-Connect, Connection Size 2: 5/32 in, Material Construction: Brass, Dimensions: 0.38 in W, -10 to 200 deg F

Connection Size 1      :      5/32 in
Connection Size 2      :      5/32 in
Connection Type 1      :      Push-to-Connect
Connection Type 2      :      Push-to-Connect
Dimensions      :      0.38 in W
Material      :      Brass
Material Construction      :      Brass
Shape      :      Connector
Temperature Rating      :      -10 to 200 deg F
  • Quick-connect, simply push tubing in, no tools, saves up to 75% of assembly time of standard compression fittings
  • Quick-disconnect, hold two fingers on insert and pull tubing out, no tools required
  • Reusable, connect and disconnect numerous times
  • Full flow design, provides up to 60% more flow area than conventional fittings with internal tube supports
  • Positive seal, no leaks, after tubing is inserted, seal is made
  • Secure tube retention, pulling on tubing only serves to tighten the connection
  • Self contained assembly, no loose parts, brass body and insert
  • NPTF with Teflon®-based sealant pre-applied
  • Straight connectors have interior hex for Allen key tightening where space is limited, no need to use a wrench

Prop Warning Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Midland_Metals_10022_CAT.pdf
