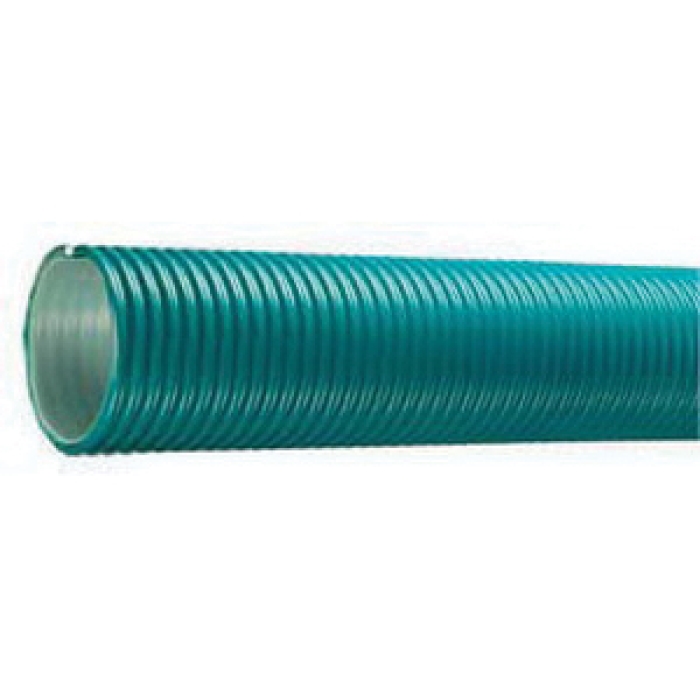

Kuriyama Tigerflex® Amphibian™ AMPH™ PVC Heavy-Duty Material Handling Hose, 6 in, 1 ftL, 30 psi

Kuriyama AMPH600X20

  • Manufacturers: Kuriyama Of America
  • Brand Name: Kuriyama
  • ARGPN: AMPH600
  • MPN: AMPH600X20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Kuriyama Tigerflex® Heavy-Duty Material Handling Hose, Series: Amphibian™ AMPH™, Nominal Size: 6 in, 6.81 in OD, 6 in ID, 1 ft Length, 30 psi, Material Construction: PVC, PVC Cover, Construction: PVC Cover with Polyurethane Liner and Rigid PVC Helix, 18 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 150 deg F High

Bend Radius      :      18 in
Construction      :      PVC Cover with Polyurethane Liner and Rigid PVC Helix
Cover Material      :      PVC
Inside Diameter      :      6 in
Length      :      20 ft
Material      :      PVC
Material Construction      :      PVC
Nominal Size      :      6 in
Outside Diameter      :      6.81 in
Pressure Rating      :      30 psi
Product Type      :      Material Handling Hose
Resistance Properties      :      Abrasion, Oil
Series      :      Amphibian™ AMPH™
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
  • Designed for wet or dry applications where abrasion is a factor, provides longer hose life and lower operating costs versus similar rubber or PVC hoses
  • Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
  • Hose remains flexible in sub-zero temperatures
  • Provides increased hose flexibility
  • Resists most animal and petroleum-based oils
  • Phthalate-free

Applications: For agricultural dry fertilizers, air seeder lines, fly ash collection, heavy-duty abrasive material handling, industrial vacuum equipment, milling machine scrap recovery, rock, gravel, sand and crushed concrete vacuuming and shot blast recovery

Prop Warning RoHS EU 2002/95/EC Compliant

  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_AMPH400X100_SS_NEW2021.pdf
