Kuriyama AMPH500X100 AMPH500

Kuriyama AMPH500X100 AMPH500

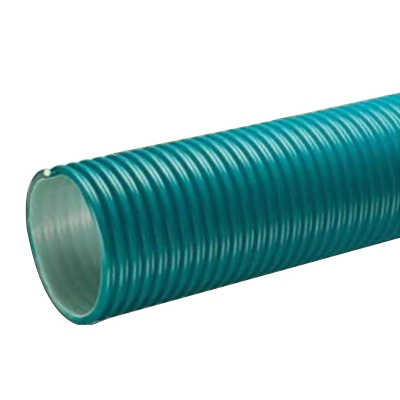

Kuriyama Tigerflex® Amphibian™ AMPH™ Polyurethane Heavy-Duty Material Handling Hose, 5 in, 1 ft L, 36 psi

  1. pin-int

Kuriyama Tigerflex® Heavy-Duty Material Handling Hose, Series: Amphibian™ AMPH™, Nominal Size: 5 in, 5-3/4 in OD, 5 in ID, 1 ft Length, 36 psi, Material Construction: PVC, PVC Cover, Construction: PVC Cover with Polyurethane Liner and Rigid PVC Helix, 15 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 150 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      15 in
Construction      :      PVC Cover with Polyurethane Liner and Rigid PVC Helix
Cover Material      :      PVC
Inside Diameter      :      5 in
Length      :      100 ft
Material      :      PVC
Material Construction      :      PVC
Nominal Size      :      5 in
Outside Diameter      :      5-3/4 in
Pressure Rating      :      36 psi
Product Type      :      Material Handling Hose
Resistance Properties      :      Abrasion, Oil
Series      :      Amphibian™ AMPH™
Sub Brand      :      Tigerflex®
Temperature High      :      150 deg F
Temperature Low      :      -40 deg F
  • Designed for wet or dry applications where severe abrasion is a factor, provides longer hose life and lower operating costs versus rubber or PVC hoses
  • Specially formulated to help prevent the build-up of static electricity for added safety and to help keep material flowing smoothly
  • Hose remains flexible in sub-zero temperatures
  • Provides increased hose flexibility
  • Resists most animal and petroleum-based oils
  • Phthalate-free

Applications: For agricultural dry fertilizers, air seeder lines, fly ash collection, heavy-duty abrasive material handling, industrial vacuum equipment, milling machine scrap recovery, rock, gravel, sand and crushed concrete vacuuming and shot blast recovery

  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Kuriyama_AMPH500X100_SS.pdf
