Hansen™ and Gromelle™ FD90-1040-04 FD90-1040-04

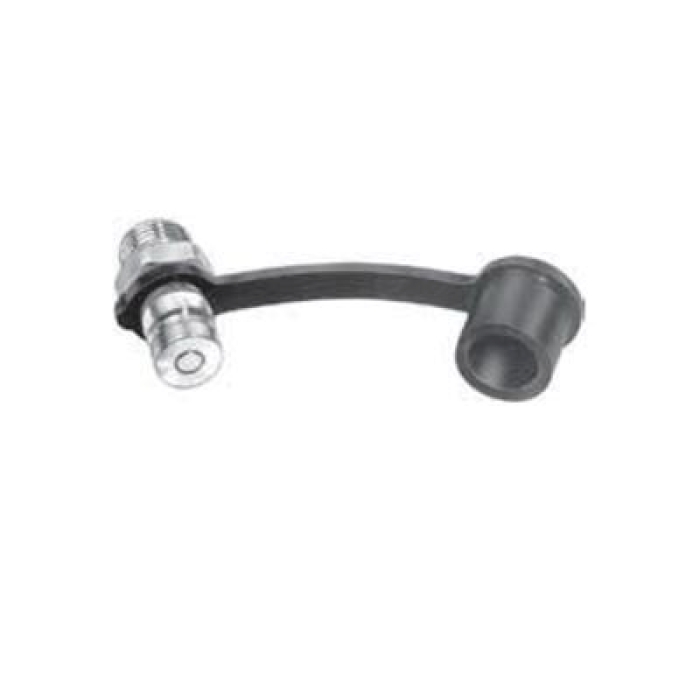

Hansen™ and Gromelle™ FD50 Zinc Trivalent-Plated Carbon Steel Dust Cap, 1/4 in Quick Disconnect

  1. pin-int

Hansen™ and Gromelle™ Dust Cap, Series: FD50, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, 7000 psi, Material Construction: Carbon Steel, Finish: Zinc Trivalent-Plated, -40 to 250 deg F

Connection Size 1      :      1/4 in
Connection Type 1      :      Quick Disconnect
Finish      :      Zinc Trivalent-Plated
Material      :      Steel
Material Construction      :      Carbon Steel
Pressure Rating      :      7000 psi
Series      :      FD50
Shape      :      Dust Cap
Temperature Rating      :      -40 to 250 deg F

Eaton FD90 Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7000 psi.

  • Automatic sleeve for one hand push-to-connect operation
  • Flush face valving provides minimal fluid loss and low air inclusion
  • Self-sealing valve design allows connection and disconnection at 500 psi
  • Broad range of end configurations for system accessibility
  • Standard seal material Buna-N
  • Diagnostic pressure testing for hydraulic systems
