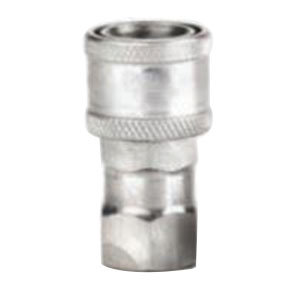

Hansen™ and Gromelle™ Coupling with Valve, Series: FD48, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.81 in, 3000 psi, Material Construction: Carbon Steel, Finish: Trivalent Zinc-Plated, Dimensions: 2.01 in L x 1.06 in W x 1.06 in H
| Connection Size 1 |
: |
1/4 in |
| Connection Size 2 |
: |
1/4 in |
| Connection Type 1 |
: |
Quick Disconnect |
| Connection Type 2 |
: |
NPT |
| Dimensions |
: |
2.01 in L x 1.06 in W x 1.06 in H |
| Finish |
: |
Trivalent Zinc-Plated |
| Gender 1 |
: |
Female |
| Gender 2 |
: |
Female |
| Hex Size |
: |
0.81 in |
| Material |
: |
Steel |
| Material Construction |
: |
Carbon Steel |
| Pressure Rating |
: |
3000 psi |
| Series |
: |
FD48 |
| Shape |
: |
Coupling |
| Thread Size 2 |
: |
1/4-18 |
Eaton's FD48 Series coupling is poppet style quick disconnect coupling designed to interchange with Parker Bruning SM-250 couplings where excellent high and low pressure sealing is required. The FD48 operates with pressures up to 3000 psi.
- Self-sealing poppet valves provide excellent high and low pressure sealing
- PUSH-PULL™ ball latch design allows quick and easy connection and disconnection of fluid lines
- Heat treated and plated steel for wear and corrosion resistance
- High resistance carbon steel with zinc trivalent plating
- Buna-N seal material
Applications: Hydraulic and fluid transfer, agricultural equipment
-
