GORE® UPG1801.50X150FF
  1. pin-int

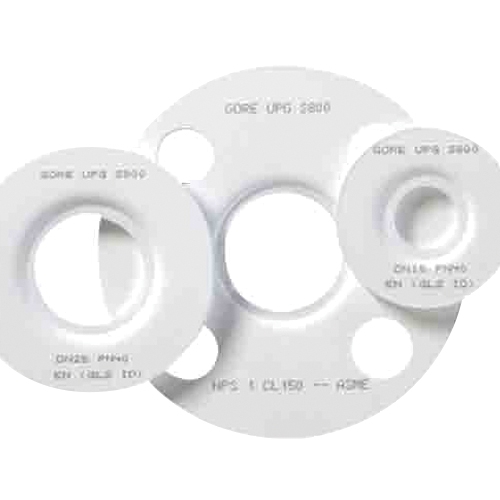

GORE® Style 800 PTFE #150 Universal Pipe Gasket, 1-1/2 in, 1/8 in Thick

GORE® UPG1801.50X150FF

  • Manufacturers: W. L. Gore & Associates
  • Brand Name: GORE®
  • ARGPN: 1-1/2 FG 1/8 PTFE
  • MPN: UPG1801.50X150FF
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

GORE® #150 Universal Pipe Gasket, Series: Style 800, Nominal Size: 1-1/2 in, 1/8 in Thickness, 3000 psi, -269 to 315 deg C, Material Construction: PTFE

Material      :      PTFE
Material Construction      :      PTFE
Nominal Size      :      1-1/2 in
Pressure Rating      :      3000 psi
Product Type      :      Gasket
Series      :      Style 800
Temperature Rating      :      -269 to 315 deg C
Thickness      :      1/8 in

GORE® universal pipe gasket (Style 800) provides a reliable seal for steel, glass-lined steel and fiber reinforced plastic (FRP) flanges, in the full spectrum of strong acid, alkali and solvent process media, including the most challenging thermal cycling and elevated temperature applications. This single gasket solution can reduce the process safety and production downtime risks caused by the use of an incorrect gasket material. Highly conformable 100% ePTFE reliably seals irregular surfaces.

  • Proprietary, patented technology
  • Long-term reliable sealing
  • Seals at low bolt loads
  • Highly conformable
  • High chemical and thermal resistance
  • High dimensional stability and creep resistance

Applications: For industrial use

Prop Warning ASME B16.21

  • pdfCut Sheet https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/GORE_UPG180150X150FF_SS.pdf
  • pdfSDS https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/GORE_UPG180150X150FF_SDS.pdf
