Gates® 4467-1204 6TH8NC

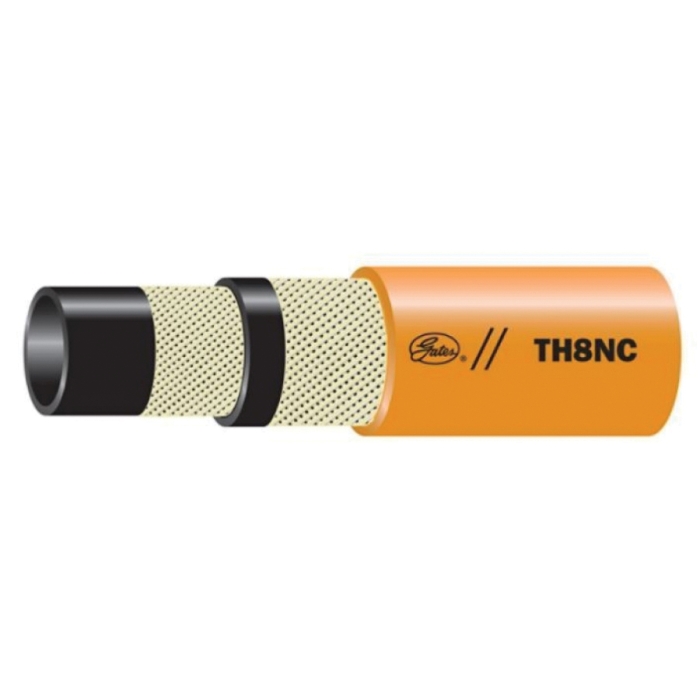

Gates® TH8NC Orange Type Z Nylon Non-Conductive Hydraulic Hose, 3/8 in, 4000 psi

  1. pin-int

Gates® Non-Conductive Hydraulic Hose, Series: TH8NC, Nominal Size: 3/8 in, Dash Size: 06, 3/4 in OD, 3/8 in ID, 4000 psi, SAE Rating: SAE 100R8, Material Construction: Type Z Nylon, Urethane Cover, Construction: 2-Polyester Braids, Orange, 2-1/2 in Bend Radius, Resistance Properties: Aging, High-Temperature, Weathering, -65 deg F Low, 200 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      2-1/2 in
Color      :      Orange
Construction      :      2-Polyester Braids
Cover Material      :      Urethane
Dash Size      :      06
Inside Diameter      :      3/8 in
Material      :      Nylon
Material Construction      :      Type Z Nylon
Nominal Size      :      3/8 in
Outside Diameter      :      3/4 in
Pressure Rating      :      4000 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Aging, High-Temperature, Weathering
SAE Rating      :      SAE 100R8
Series      :      TH8NC
Temperature High      :      200 deg F
Temperature Low      :      -65 deg F

High-pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.

  • Validated with MegaCrimp®
  • Orange urethane cover that resists hydraulic fluids, high-temperatures, aging and weathering
  • TH8NC cover is non-perforated for applications requiring electrical non-conductivity
  • Maximum leakage shall not exceed 50 uA when subjected to 75 kV/ft for 5 min
  • Orange is industry accepted color for non-conductive hose
  • 100% seamless nylon, type Z that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol
  • TH8NC hose (orange cover) meets SAE 100R8 non-conductivity requirements
  • TH8NC hose meets or exceeds performance requirements of SAE 100R8 with a significantly tighter bend radius

Applications: For power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery
