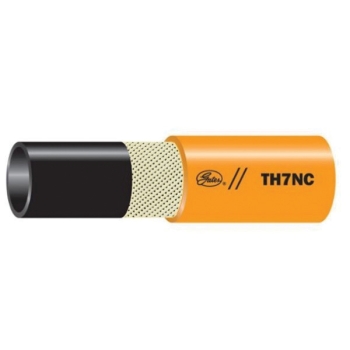

Gates® TH7NC Orange Type Z Nylon Non-Conductive Hydraulic Hose, 3/4 in, 1250 psi

Gates® 4467-1177

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 12TH7NC
  • MPN: 4467-1177
  • UPC: 770075321866
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Non-Conductive Hydraulic Hose, Series: TH7NC, Nominal Size: 3/4 in, Dash Size: 12, 1.05 in OD, 3/4 in ID, 1250 psi, SAE Rating: SAE 100R7, Material Construction: Type Z Nylon, Urethane Cover, Construction: Braided Synthetic Fiber, Orange, 5 in Bend Radius, Resistance Properties: Aging, High-Temperature, Weathering, -65 deg F Low, 200 deg F High

Bend Radius      :      5 in
Color      :      Orange
Construction      :      Braided Synthetic Fiber
Cover Material      :      Urethane
Dash Size      :      12
Inside Diameter      :      3/4 in
Material      :      Nylon
Material Construction      :      Type Z Nylon
Nominal Size      :      3/4 in
Outside Diameter      :      1.05 in
Pressure Rating      :      1250 psi
Product Type      :      Hydraulic Hose
Resistance Properties      :      Aging, High-Temperature, Weathering
SAE Rating      :      SAE 100R7
Series      :      TH7NC
Temperature High      :      200 deg F
Temperature Low      :      -65 deg F

High-pressure hydraulic applications, especially material handling equipment with mast and pulley systems like forklifts, aerial lifting, hydraulic boom cranes and many others.

  • Validated with MegaCrimp®
  • Orange urethane cover that resists hydraulic fluids, high-temperatures, aging and weathering
  • Orange TH7NC cover is non-perforated for applications requiring electrical non-conductivity
  • Maximum leakage shall not exceed 50 uA when subjected to 75 kV/ft for 5 min
  • Orange is industry accepted color for non-conductive hose
  • Orange color TH7NC meets SAE 100R7 non-conductivity requirements
  • Meets or exceeds performance requirements of SAE 100R7 with a significantly tighter bend radius
  • Meets ANSI A92.2 for vehicle-mounted aerial devices
  • 100% seamless nylon, type Z that easily handles a broad range of hydraulic fluids, including phosphate esters and water glycol

Applications: For power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery

Prop Warning ANSI A92.2 Specified|EN855 R8|ISO 3949 R8 Specified|SAE 100R8 Certified
