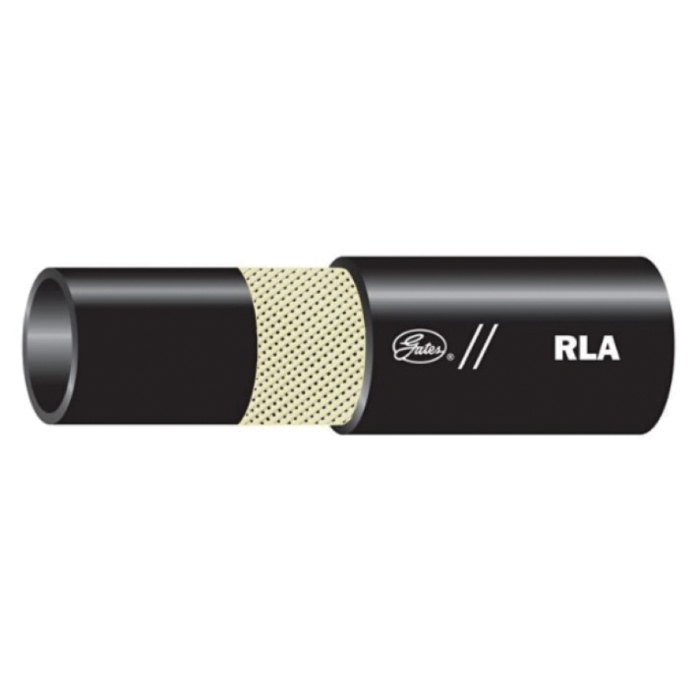

Gates® RLA Black Synthetic Rubber (Type C Nitrile) Return Line and Low Pressure Hose, 1/2 in, 200 psi

Gates® 32840150

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 8RLA
  • MPN: 32840150
  • UPC: 072053225730
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Return Line and Low Pressure Hose, Series: RLA, Nominal Size: 1/2 in, Dash Size: 08, 0.66 in OD, 1/2 in ID, 200 psi, SAE Rating: SAE 30R2, Material Construction: Synthetic Rubber, Type C2 Nitrile Cover, Construction: 1-Fiber Braid, Black, 5 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 212 deg F High

Bend Radius      :      5 in
Color      :      Black
Construction      :      1-Fiber Braid
Cover Material      :      Type C2 Nitrile
Dash Size      :      08
Inside Diameter      :      1/2 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/2 in
Outside Diameter      :      0.66 in
Pressure Rating      :      200 psi
Product Type      :      Return Line and Low Pressure Hose
Resistance Properties      :      Abrasion, Oil
SAE Rating      :      SAE 30R2
Series      :      RLA
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F
  • Validated with MegaCrimp®
  • Black, synthetic rubber, oil- and abrasion-resistant (modified nitrile - Type C2) cover
  • 4:1 design factor

Applications: For low-pressure hydraulic oil return lines, general-purpose water, glycol antifreeze solutions, conveying diesel fuel, gasoline or air

Prop Warning MSHA 2G Specified|SAE 30R2, Type 1 and Type 2 Certified

  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46511606_CAT.pdf
