Gates® 46572189 20MEGATECH G5TB

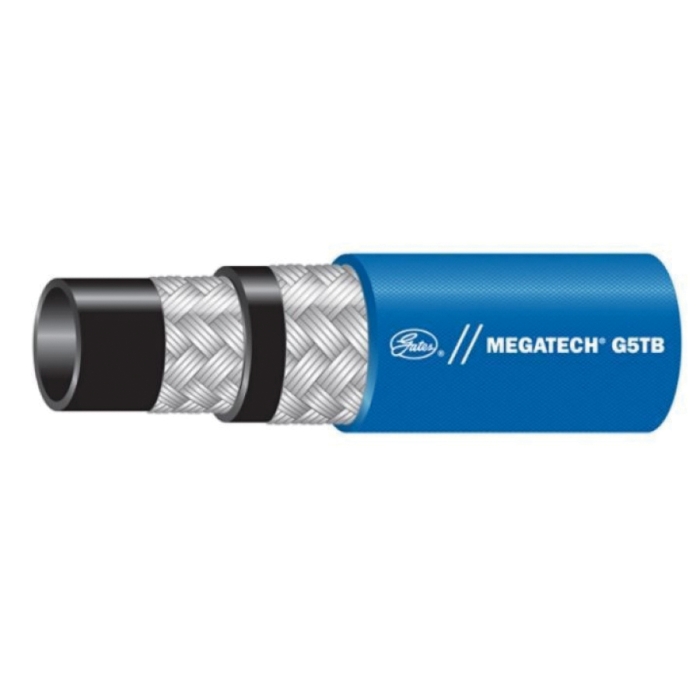

Gates® MEGATECH® G5TB Black/Blue Synthetic Rubber (Type J CPE) Oil-Air Return Hose, 1-1/4 in, 1000 psi

  1. pin-int

Gates® MEGATECH® Oil-Air Return Hose, Series: G5TB, Nominal Size: 1-1/4 in, Dash Size: 20, 1.7 in OD, 1-1/4 in ID, 1000 psi, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Braids of High-Tensile Steel Wire, Black/Blue, 8-1/2 in Bend Radius, Resistance Properties: Chemical, Mildew, Oil, Temperature, -40 deg F Low, 300 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      8-1/2 in
Color      :      Black/Blue
Construction      :      2-Braids of High-Tensile Steel Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      20
Inside Diameter      :      1-1/4 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1-1/4 in
Outside Diameter      :      1.7 in
Pressure Rating      :      1000 psi
Product Type      :      Oil-Air Return Hose
Resistance Properties      :      Chemical, Mildew, Oil, Temperature
Series      :      G5TB
Sub Brand      :      MEGATECH®
Temperature High      :      300 deg F
Temperature Low      :      -40 deg F
  • MEGATECH® is True-Bore ID Gates Technical Spec 300F tube stock with textile braid cover
  • MEGATECH® G5TB has a blue textile braid cover
  • Blue, oil- and mildew-resistant textile braid, impregnated with synthetic rubber cover
  • True-bore GTS (Gates Technical Spec) black tube specifically compounded for temperature and chemical-resistant (CPE - Type J)

Applications: For pressurized hot oil return lines and rotary oil lines and high-temperature transmission and lubricating oil systems using petroleum-base oils
