Gates® 46572334 8MEGATECH 1000

Gates® 46572334 8MEGATECH 1000

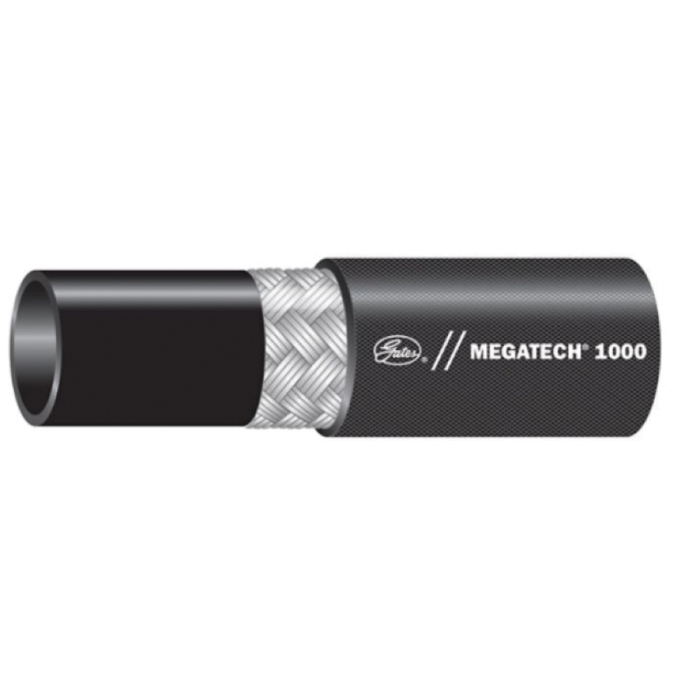

Gates® MEGATECH® 1000 46572334 Black Synthetic Rubber (Type J CPE) High-Temp Oil-Air Return Hose, 1/2 in, 1000 psi

  1. pin-int

Gates® MEGATECH® 1000 High-Temp Oil-Air Return Hose, Nominal Size: 1/2 in, Dash Size: 08, 0.8 in OD, 1/2 in ID, 1000 psi, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 1-Braid of High-Tensile Steel Wire, Black, 3-1/2 in Bend Radius, Resistance Properties: Chemical, Mildew, Oil, Temperature, -40 deg F Low, 300 deg F High

Attribute Type Configurator      :      Parent
Bend Radius      :      3-1/2 in
Color      :      Black
Construction      :      1-Braid of High-Tensile Steel Wire
Cover Material      :      Synthetic Rubber
Dash Size      :      08
Inside Diameter      :      1/2 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/2 in
Outside Diameter      :      0.8 in
Pressure Rating      :      1000 psi
Product Type      :      Oil-Air Return Hose
Resistance Properties      :      Chemical, Mildew, Oil, Temperature
Sub Brand      :      MEGATECH® 1000
Temperature High      :      300 deg F
Temperature Low      :      -40 deg F
  • Very good resistance to weathering and ozone
  • Meets the requirements of SAE J1405 performance specifications for use in high-temperature transmission oil systems and high-temperature lubrication oil systems using petroleum-based oils
  • MegaTech® is True-Bore ID Gates® Technical Spec 300F tube stock with textile braid cover
  • MegaTech® is compatible with a variety of fluids such as hydraulic oil, phosphate esters, diesters
  • MegaTech® 1000 has a black textile braid cover
  • -4 to -20 validated with MegaCrimp®
  • 4:1 design factor
  • Oil and mildew-resistant, textile braid, impregnated with synthetic rubber cover
  • GTS (Gates Technical Spec.) black tube specifically compounded for temperature and chemical-resistant (CPE - Type J)

Applications: For air brake, pressurized hot oil return lines and rotary oil/air compressor lines

Safety Notes:

  • Not recommended for gasoline or diesel fuel applications.
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_46511606_CAT.pdf
