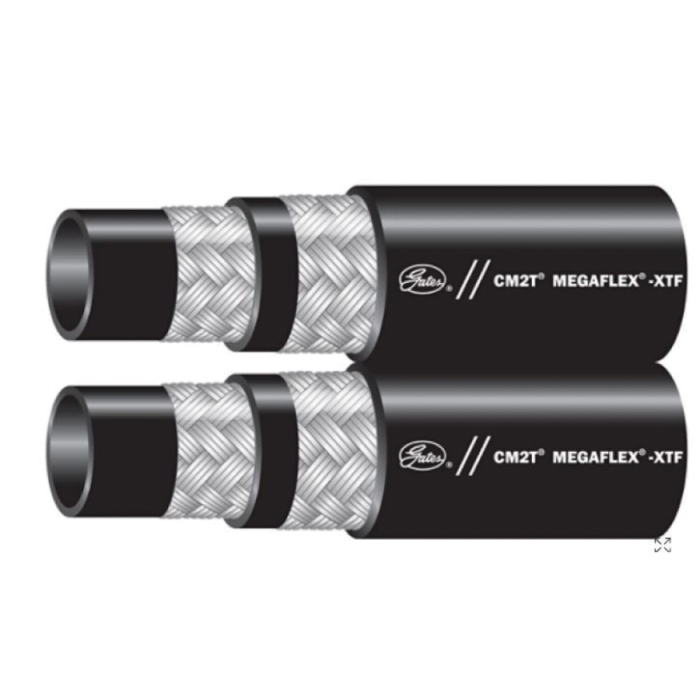

Gates® Megaflex® CM2TDL-XTF Black Synthetic Rubber (Type C Nitrile) Dual Line Braided Hose, 3/8 in, 4800 psi

Gates® 46574974

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • MPN: 46574974
  • UPC: 770075423720
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Megaflex® Dual Line Braided Hose, Series: CM2TDL-XTF, Nominal Size: 3/8 in, Dash Size: 06, 0.7 in OD, 3/8 in ID, 4800 psi, SAE Rating: SAE 100R16, Material Construction: Synthetic Rubber, XtraTuff® Nitrile Cover, Construction: 2-Braids of High-Tensile Steel Wire, Black, 3-1/2 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High

Bend Radius      :      3-1/2 in
Color      :      Black
Construction      :      2-Braids of High-Tensile Steel Wire
Cover Material      :      XtraTuff® Nitrile
Dash Size      :      06
Inside Diameter      :      3/8 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      3/8 in
Outside Diameter      :      0.7 in
Pressure Rating      :      4800 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil, Weather
SAE Rating      :      SAE 100R16
Series      :      CM2TDL-XTF
Sub Brand      :      Megaflex®
Temperature High      :      212 deg F
Temperature Low      :      -40 deg F

Recommended for high abrasive high-pressure hydraulic oil lines that are joined together for easier plumbing and routing. High-pressure and return lines such as boom arm and forklift applications. Gates recommends minimum split length of 250 mm depending on the application.

  • CM2T twin hose is compatible with bio-degradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
  • Superior flex impulse performance tested to 1000000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
  • CM2TDL-XTF hose has smaller exterior dimensions and significantly tighter bend radius
  • Black, oil-, abrasion- and weather-resistant, synthetic rubber (modified nitrile - Type C2) with color coded layline cover

Applications: For high-pressure hydraulic applications

Prop Warning EN856 R12|EN857 2SC|ISO 11237 2SC R16S Specified|ISO/DIS 1436 Specified|MSHA 2G Specified|SAE 100R12 Certified
