Gates® 8G-6FFORX45S

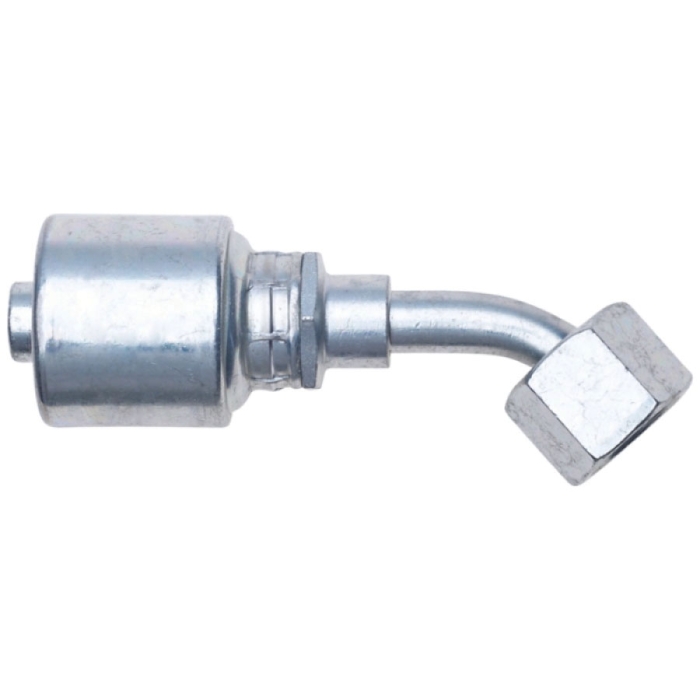

Gates® MegaCrimp® 8G-6FFORX45S TuffCoat® Female ORFS Swivel Crimp Hose 45 deg Short Drop Elbow, 1/2 in x 3/8 in

Manufacturer: Gates Corp
Brand: Gates®
ARGPN: 8G-6FFORX45S

MPN: 8G-6FFORX45S

Available for delivery:
Available for pickup at Anchorage, AK Branch:
Sold As: 1/PK
Add to cart

Description
Specs
Features
Documents

Gates® MegaCrimp® Crimp Hose 45 deg Short Drop Elbow, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: ORFS Swivel, Gender 2: Female, Connection Size 2: 3/8 in, Nominal Size: 3/8 in, Thread Size 2: 11/16-16, Hex Size: 22 mm, Cut-Off Factor: 2.09 in, Finish: TuffCoat®, Dimension Standards: SAE J1453

Connection Size 1	:	1/2 in
Connection Size 2	:	3/8 in
Connection Type	:	Hose~ORFS Female Swivel
Connection Type 1	:	Hose
Connection Type 2	:	ORFS Swivel
Cut-Off Factor	:	2.09 in
Dimension Standards	:	SAE J1453
Finish	:	TuffCoat®
Fitting Type	:	45 deg Elbow
Gender 2	:	Female
Hex Size	:	22 mm
Hose Dash Size	:	08
Nominal Size	:	3/8 in
Shape	:	45 deg Elbow
Sub Brand	:	MegaCrimp®
Thread Size 2	:	11/16-16

MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
Surpassed one million impulse cycles during design testing
Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
