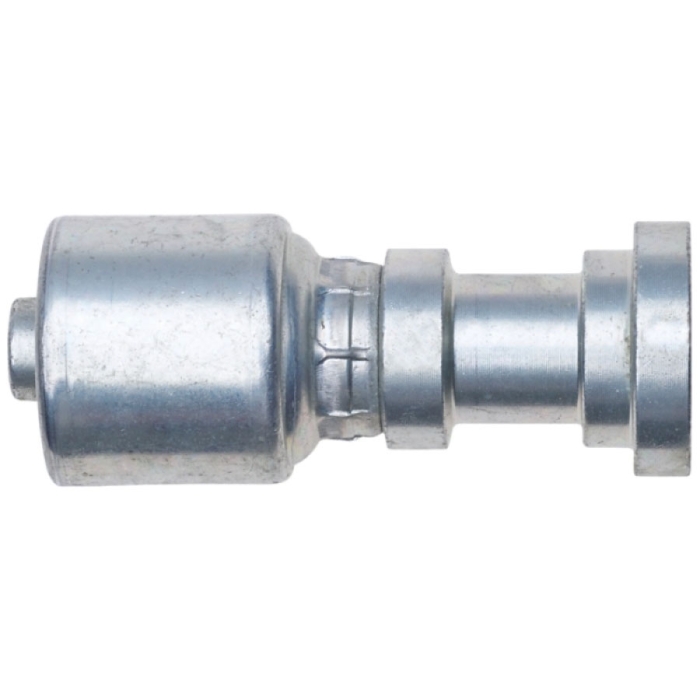

Gates® MegaCrimp® 8G-10FLK TuffCoat® Komatsu O-Ring Flange Crimp Straight Hose Fitting, 1/2 in x 5/8 in

Gates® 8G-10FLK

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 8G-10FLK
  • MPN: 8G-10FLK
  • UPC: 072053205626
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® MegaCrimp® Crimp Straight Hose Fitting, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: Komatsu Flange, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Cut-Off Factor: 1.67 in, Finish: TuffCoat®, Dimensions: 3.15 in L

Connection Size 1      :      1/2 in
Connection Size 2      :      5/8 in
Connection Type      :      Hose~Komatsu
Connection Type 1      :      Hose
Connection Type 2      :      Komatsu Flange
Cut-Off Factor      :      1.67 in
Dimensions      :      3.15 in L
Finish      :      TuffCoat®
Fitting Type      :      Straight Hose Fitting
Hose Dash Size      :      08
Nominal Size      :      5/8 in
Shape      :      Straight
Sub Brand      :      MegaCrimp®

MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

  • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
  • MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
  • Surpassed one million impulse cycles during design testing
  • Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
  • pdfCatalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_1012FJX_CAT.pdf
