Gates® 8G-10FJX90M 8G-10FJX90M

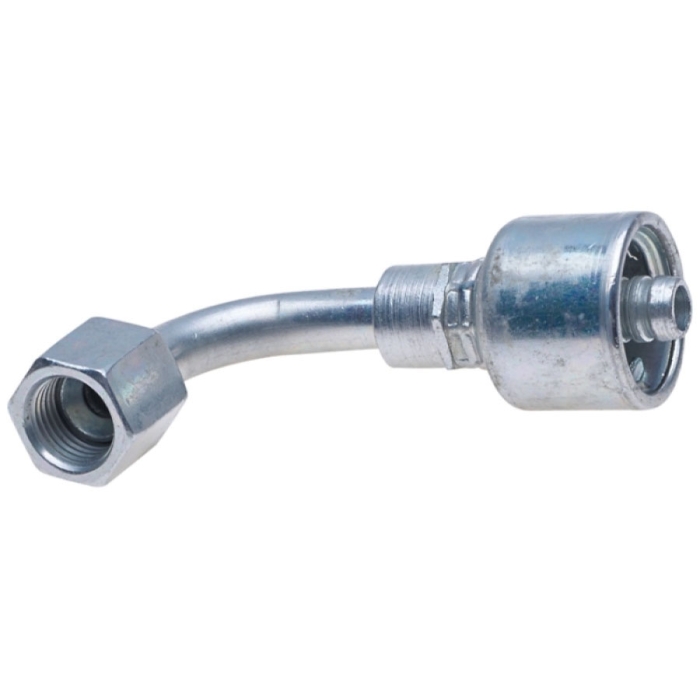

Gates® MegaCrimp® 8G-10FJX90M TuffCoat® Female 37 deg JIC Flare Swivel Crimp Hose 90 deg Medium Drop Elbow, 1/2 in x 5/8 in

  1. pin-int

Gates® MegaCrimp® Crimp Hose 90 deg Medium Drop Elbow, Connection Type 1: Hose, Connection Size 1: 1/2 in, Hose Dash Size: 08, Connection Type 2: 37 deg JIC Flare Swivel, Gender 2: Female, Connection Size 2: 5/8 in, Nominal Size: 5/8 in, Thread Size 2: 7/8-14, Hex Size: 27 mm, Cut-Off Factor: 2.2 in, Finish: TuffCoat®

Connection Size 1      :      1/2 in
Connection Size 2      :      5/8 in
Connection Type      :      Hose~JIC Female Swivel
Connection Type 1      :      Hose
Connection Type 2      :      37 deg JIC Flare Swivel
Cut-Off Factor      :      2.2 in
Finish      :      TuffCoat®
Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Hex Size      :      27 mm
Hose Dash Size      :      08
Nominal Size      :      5/8 in
Shape      :      90 deg Elbow
Sub Brand      :      MegaCrimp®
Thread Size 2      :      7/8-14

MegaCrimp® couplings give you a leak-proof seal that's so innovative, it's patented. It's what's inside the MegaCrimp coupling that makes it perform so well, the C insert. This C insert allows usage with different constructions and wall thickness. In addition, the C insert ensures an even distribution of crimping forces to form a concentric seal. That simplifies your inventory requirements since one size can accommodate many different hose ODs, on both one and two-wire hoses. An additional bonus - MegaCrimp™ couplings are a fully qualified EN-performance coupling.

  • One of the most common causes of hydraulic leaks is a cracked coupling nut or seat due to over torquing by a strong armed worker, Gates® has engineered a solution Full-Torque Nut™ technology now available on Gates® MegaCrimp®
  • MegaCrimp couplings set a new standard for hydraulic couplings, the unique C insert ensures weep-free concentric crimping to keep equipment and the environment clean
  • Surpassed one million impulse cycles during design testing
  • Environmentally-friendly TuffCoat® plating for 3x better corrosion resistance than SAE standard
