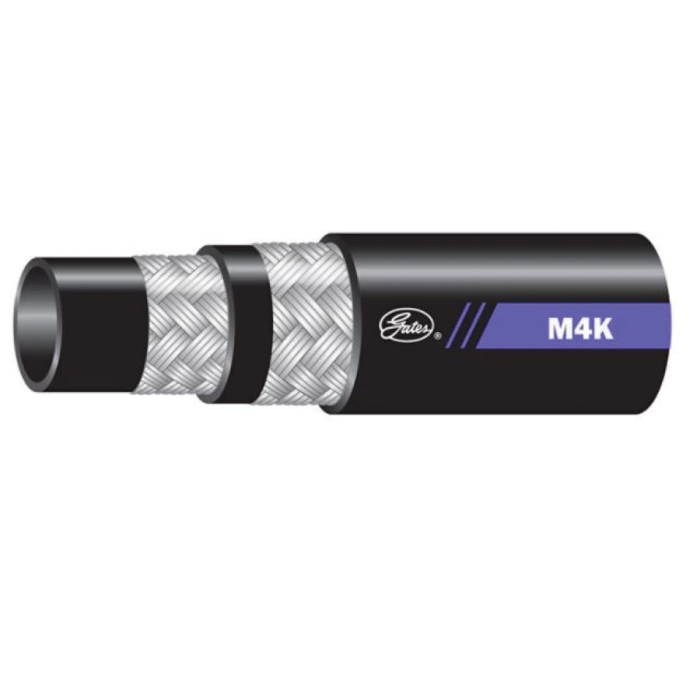

Gates® Mega4000™ M4K Black Synthetic Rubber Hydraulic Braided Hose, 5/8 in, 4000 psi

Gates® Mega4000™ Hydraulic Braided Hose, Series: M4K, Nominal Size: 5/8 in, Dash Size: 10, 0.99 in OD, 5/8 in ID, 4000 psi, SAE Rating: SAE 100R19, Material Construction: Synthetic Rubber, Type C Nitrile Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 3 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High

• Easy to route and to install in extremely tight areas
• M4K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
• Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
• Meets flame-resistant acceptance designation MSHA 2G
• Provides greater performance, flexibility, easier routing and plumbing of mobile and stationary hydraulic platforms
• 50% of EN 857 2SC and 40% of EN 853 2SN bend radius at rated working pressure
• Alternative to spiral hoses in high-pressure lines where flexibility is required
• Validated with MegaCrimp®
• Black, oil, abrasion and weather-resistant, synthetic rubber (modified nitrile - Type C2) with color-coded lay line cover

Applications: For high pressure hydraulic oil lines

ABS Approved | DNV-GL Certified | EN857 2SC | ISO 18752 Grade B, ISO 11237 R19 Specified | MSHA 2G Specified | SAE 100R19 Certified

• Catalog https://www.alaskarubbergroup.com//ASSETS/DOCUMENTS/ITEMS/EN/Gates_36581779_CAT.pdf
