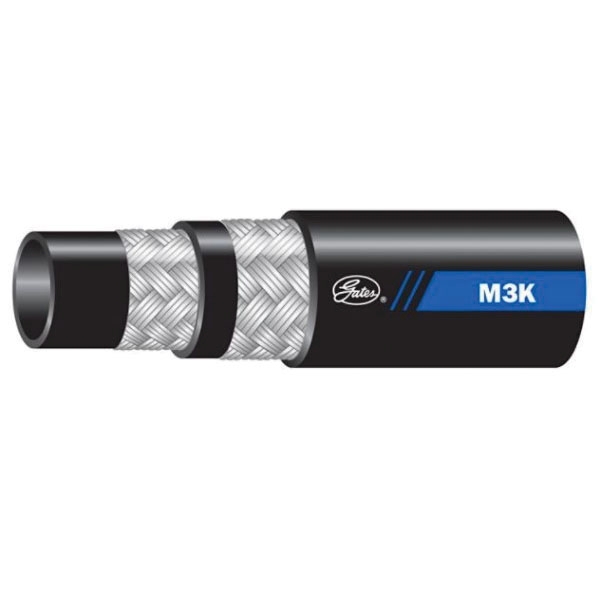

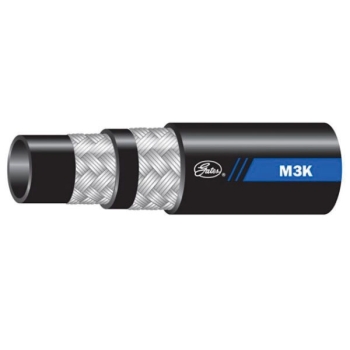

Gates® Mega3000® Hydraulic Braided Hose, Series: M3K, Nominal Size: 1/2 in, Dash Size: 08, 0.8 in OD, 1/2 in ID, 3250 psi, SAE Rating: SAE 100R17, Material Construction: Synthetic Rubber, Type C2 Nitrile/PVC Cover, Construction: 1-Braid of High-Tensile Steel Wire, Black, 2.8 in Bend Radius, Resistance Properties: Abrasion, Oil, Weather, -40 deg F Low, 212 deg F High
| Bend Radius |
: |
2.8 in |
| Color |
: |
Black |
| Construction |
: |
1-Braid of High-Tensile Steel Wire |
| Cover Material |
: |
Type C2 Nitrile/PVC |
| Dash Size |
: |
08 |
| Inside Diameter |
: |
1/2 in |
| Material |
: |
Nitrile |
| Material Construction |
: |
Synthetic Rubber |
| Nominal Size |
: |
1/2 in |
| Outside Diameter |
: |
0.8 in |
| Pressure Rating |
: |
3250 psi |
| Product Type |
: |
Braided Hose |
| Resistance Properties |
: |
Abrasion, Oil, Weather |
| SAE Rating |
: |
SAE 100R17 |
| Series |
: |
M3K |
| Sub Brand |
: |
Mega3000® |
| Temperature High |
: |
212 deg F |
| Temperature Low |
: |
-40 deg F |
- Easy to route and to install in extremely tight areas
- M3K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
- Meets flame-resistant acceptance designation MSHA 2G
- 70% of EN 857 1SC/2SC and 50% of EN 853 1SN/2SN bend radius at rated working pressure
- Mega3000 rated at 3250 psi working pressure and 13000 burst for all ID's
- Exceeds working pressure requirements of R17
- Validated with MegaCrimp®
- Black, oil, abrasion and weather-resistant, synthetic rubber (nitrile/PVC - Type C2) with color-coded lay line cover
Applications: For high pressure hydraulic oil lines
ABS Approved | DNV-GL Certified | EN 857 1SC/2SC and EN 853 1SN/2SN | ISO 11237 R17, ISO 18752 Specified | MSHA 2G Specified | SAE 100R17 Certified
-
