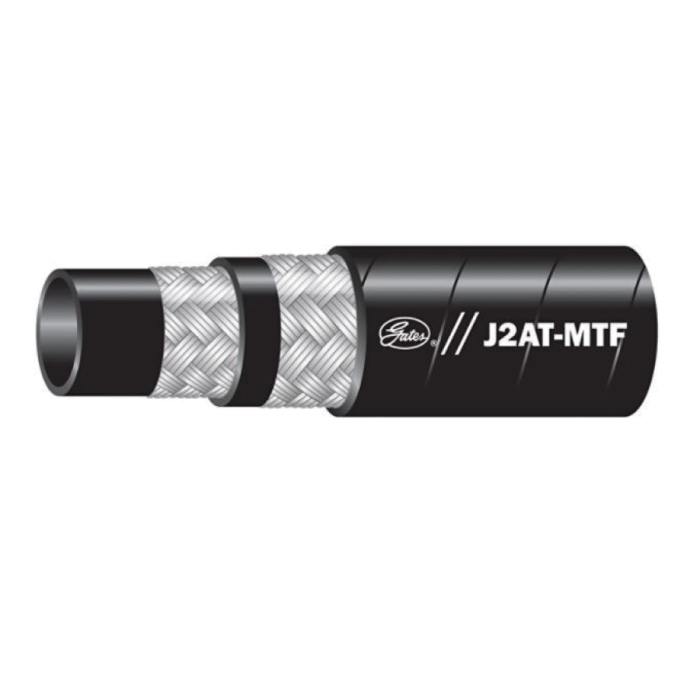

Gates® J2AT-MTF Black Synthetic Rubber (Type C Nitrile) Hydraulic Braided Jack Hose, 1/4 in, 10000 psi

Gates® 4657-1188

  • Manufacturers: Gates Corp
  • Brand Name: Gates®
  • ARGPN: 4J2AT-MTF
  • MPN: 4657-1188
  • UPC: 072053435610
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Branch Availability: loading
  • Total Availability: loading
  • Availability: Typically Ships in 3-5 days

Gates® Hydraulic Braided Jack Hose, Series: J2AT-MTF, Nominal Size: 1/4 in, Dash Size: 04, 0.59 in OD, 1/4 in ID, 10000 psi, Material Construction: Synthetic Rubber, MegaTuff®/Synthetic Rubber Cover, Construction: 2-Braids of High-Tensile Steel Wire, Black, 2 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 120 deg F High

Bend Radius      :      2 in
Color      :      Black
Construction      :      2-Braids of High-Tensile Steel Wire
Cover Material      :      MegaTuff®/Synthetic Rubber
Dash Size      :      04
Inside Diameter      :      1/4 in
Material      :      Nitrile
Material Construction      :      Synthetic Rubber
Nominal Size      :      1/4 in
Outside Diameter      :      0.59 in
Pressure Rating      :      10000 psi
Product Type      :      Braided Hose
Resistance Properties      :      Abrasion, Oil
Series      :      J2AT-MTF
Temperature High      :      120 deg F
Temperature Low      :      -40 deg F
  • Meets material handling institute specification IJ100 for hydraulic hose and assemblies used with jacking systems
  • 10000 psi static pressure only
  • Use MegaCrimp male pipe long nose (MPLN) coupling for full thread engagement
  • Black, oil- and abrasion-resistant, synthetic rubber and MegaTuff® cover
  • MegaTuff® hose lasts up to 300X longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945

Applications: For hydraulic jack applications

Prop Warning ISO 6945 Specified|MSHA 2G Specified
