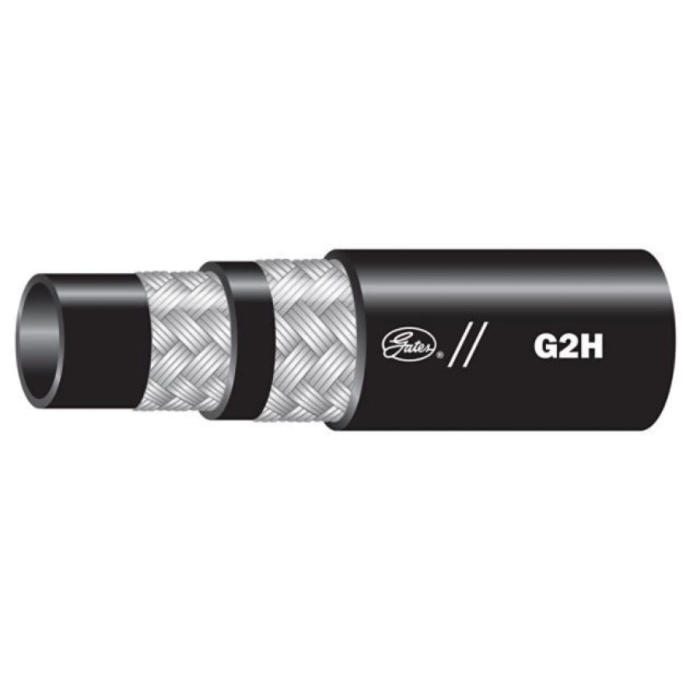

Gates® Hydraulic Braided Hose, Series: G2H, Nominal Size: 1-1/4 in, Dash Size: 20, 1.86 in OD, 1-1/4 in ID, 1825 psi, SAE Rating: SAE 100R2AT, Material Construction: Synthetic Rubber, Synthetic Rubber Cover, Construction: 2-Braided High-Tensile Steel Wire, Black, 16-1/2 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 275 deg F High
| Bend Radius |
: |
16-1/2 in |
| Color |
: |
Black |
| Construction |
: |
2-Braided High-Tensile Steel Wire |
| Cover Material |
: |
Synthetic Rubber |
| Dash Size |
: |
20 |
| Inside Diameter |
: |
1-1/4 in |
| Material |
: |
Nitrile |
| Material Construction |
: |
Synthetic Rubber |
| Nominal Size |
: |
1-1/4 in |
| Outside Diameter |
: |
1.86 in |
| Pressure Rating |
: |
1825 psi |
| Product Type |
: |
Braided Hose |
| Resistance Properties |
: |
Oil |
| SAE Rating |
: |
SAE 100R2AT |
| Series |
: |
G2H |
| Temperature High |
: |
275 deg F |
| Temperature Low |
: |
-40 deg F |
- G2H hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids and phosphate esters
- Superior flex impulse performance tested to 600,000 impulse cycles, 3X the industry standard
- -20 validated with MegaCrimp®, -24 to -32 with GlobalSpiral™ Plus
- Meets flame-resistant acceptance designation MSHA 2G
- Black, oil-resistant, synthetic rubber (CSM - Type M) cover
Applications: For high-temperature, high pressure hydraulic oil line applications such as engine compartments, foundries
EN 853 2SN | ISO 1436 2SN R2 Specified | MSHA 2G Specified | SAE 100R2 AT Certified
-
