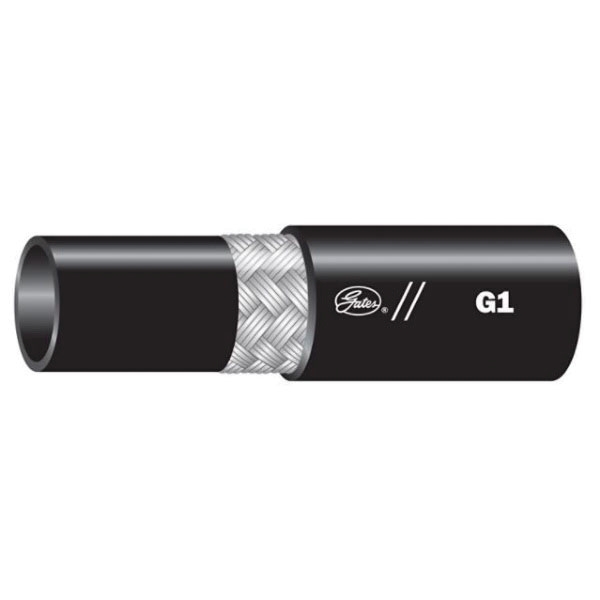

Gates® Hydraulic Braided Hose, Series: G1, Nominal Size: 1/4 in, Dash Size: 04, 0.53 in OD, 1/4 in ID, 3275 psi, SAE Rating: SAE 100R1AT, Material Construction: Synthetic Rubber, Type C2 Nitrile/PVC Cover, Construction: 1-Braid of High-Tensile Steel Wire, Black, 4 in Bend Radius, Resistance Properties: Abrasion, Oil, -40 deg F Low, 212 deg F High
| Bend Radius |
: |
4 in |
| Color |
: |
Black |
| Construction |
: |
1-Braid of High-Tensile Steel Wire |
| Cover Material |
: |
Type C2 Nitrile/PVC |
| Dash Size |
: |
04 |
| Inside Diameter |
: |
1/4 in |
| Material |
: |
Nitrile |
| Material Construction |
: |
Synthetic Rubber |
| Nominal Size |
: |
1/4 in |
| Outside Diameter |
: |
0.53 in |
| Pressure Rating |
: |
3275 psi |
| Product Type |
: |
Braided Hose |
| Resistance Properties |
: |
Abrasion, Oil |
| SAE Rating |
: |
SAE 100R1AT |
| Series |
: |
G1 |
| Temperature High |
: |
212 deg F |
| Temperature Low |
: |
-40 deg F |
- G1 hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 450,000 impulse cycles, 3X the industry standard
- -4 to -20 validated with MegaCrimp®, -24 to -32 with GlobalSpiral™ Plus
- Meets flame-resistant acceptance designation MSHA 2G
- 50% of SAE 100R1 bend radius at rated working pressure
- Black, oil and abrasion-resistant, synthetic rubber (nitrile/PVC - Type C2) cover
Applications: For medium-pressure hydraulic lines
ABS Approved | DNV-GL Certified | EN853 1SN | ISO 1436 1SN R1 Specified | MSHA 2G Specified | SAE 100R1 Type S Certified
-
