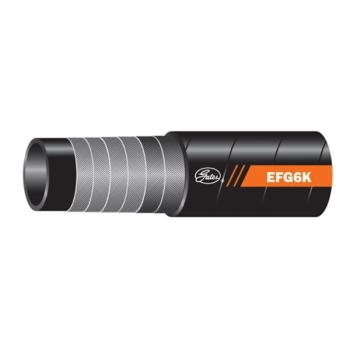

Gates® Hydraulic Spiral Hose, Series: EFG6K, Nominal Size: 3/4 in, Dash Size: 12, 1.24 in OD, 3/4 in ID, 6000 psi, SAE Rating: SAE 100R15, Material Construction: Synthetic Rubber, Type A Polychloroprene Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 4.7 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 250 deg F High
| Bend Radius |
: |
4.7 in |
| Color |
: |
Black |
| Construction |
: |
4-Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Cover Material |
: |
Type A Polychloroprene |
| Dash Size |
: |
12 |
| Inside Diameter |
: |
3/4 in |
| Material |
: |
Nitrile |
| Material Construction |
: |
Synthetic Rubber |
| Nominal Size |
: |
3/4 in |
| Outside Diameter |
: |
1.24 in |
| Pressure Rating |
: |
6000 psi |
| Product Type |
: |
Hydraulic Spiral Hose |
| Resistance Properties |
: |
Oil |
| SAE Rating |
: |
SAE 100R15 |
| Series |
: |
EFG6K |
| Temperature High |
: |
250 deg F |
| Temperature Low |
: |
-40 deg F |
- EFG6K hose is compatible with biodegradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 1,000,000 impulse cycles at 50% of SAE 100R15 bend radii
- -6 to -20 validated with GlobalSpiral™, -24, -32 with GlobalSpiral™ maximum
- Up to 40% of EN 856 4SP/4SH bend radius at rated working pressure
- EFG6K MegaSpiral™ is rated at 1/2 bend radius of SAE 100R15
- Meets flame-resistant acceptance designation MSHA 2G
- 6000 psi constant pressure for all ID's
- Black, oil-resistant, synthetic rubber (polychloroprene - Type A) with color-coded lay line cover
Applications: For extremely high pressure and high impulse applications such as hydrostatic transmissions
ABS Approved | DNV-GL Certified | EN 856 4SH | ISO 18752 Grade D Specified | MSHA 2G Specified | SAE 100R15 Certified
-
