Gates® 4651-1384 20EFG3K

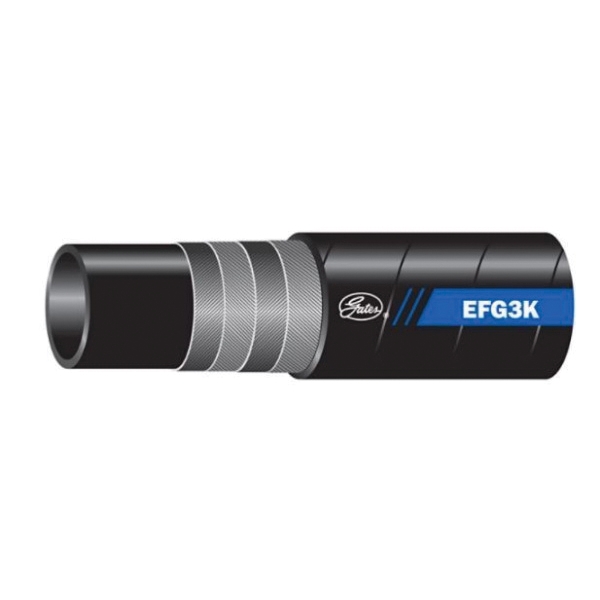

Gates® EFG3K Black Synthetic Rubber (Type C Nitrile) Hydraulic Spiral Hose, 1-1/4 in, 3000 psi
- Manufacturer: Gates Corp
- Brand: Gates®
- ARGPN: 20EFG3K
- MPN: 4651-1384
-
Available for delivery:
-
Available for pickup at
Anchorage, AK Branch:
-
Gates® Hydraulic Spiral Hose, Series: EFG3K, Nominal Size: 1-1/4 in, Dash Size: 20, 1.85 in OD, 1-1/4 in ID, 3000 psi, SAE Rating: SAE 100R12, Material Construction: Synthetic Rubber, Type A Polychloroprene Cover, Construction: 4-Alternating Layers of Spiraled, High-Tensile Steel Wire, Black, 8.2 in Bend Radius, Resistance Properties: Oil, -40 deg F Low, 250 deg F High
| Attribute Type Configurator | : | Parent |
| Bend Radius | : | 8.2 in |
| Color | : | Black |
| Construction | : | 4-Alternating Layers of Spiraled, High-Tensile Steel Wire |
| Cover Material | : | Type A Polychloroprene |
| Dash Size | : | 20 |
| Inside Diameter | : | 1-1/4 in |
| Material | : | Nitrile |
| Material Construction | : | Synthetic Rubber |
| Nominal Size | : | 1-1/4 in |
| Outside Diameter | : | 1.85 in |
| Pressure Rating | : | 3000 psi |
| Product Type | : | Hydraulic Spiral Hose |
| Resistance Properties | : | Oil |
| SAE Rating | : | SAE 100R12 |
| Series | : | EFG3K |
| Temperature High | : | 250 deg F |
| Temperature Low | : | -40 deg F |
- EFG3K hose is compatible with bio-degradable hydraulic fluids like synthetic esters, polyglycols and vegetable oils as well as petroleum-based fluids
- Superior flex impulse performance tested to 1000000 impulse cycles at 50% of EN 856 R12 and SAE 100R12 bend radii
- EFG3K is rated at 1/2 the SAE 100R12 minimum bend radius and is 3000 working pressure in all ID's
- -20 validated with GlobalSpiral™, -24 to -32 with GlobalSpiral™ Plus
- Up to 40% of EN 856 4SP bend radius at rated working pressure
- Black, oil-resistant, synthetic rubber (polychloroprene - Type A) with color coded layline cover
Applications: Extremely high-pressure and high impulse hydraulic applications
